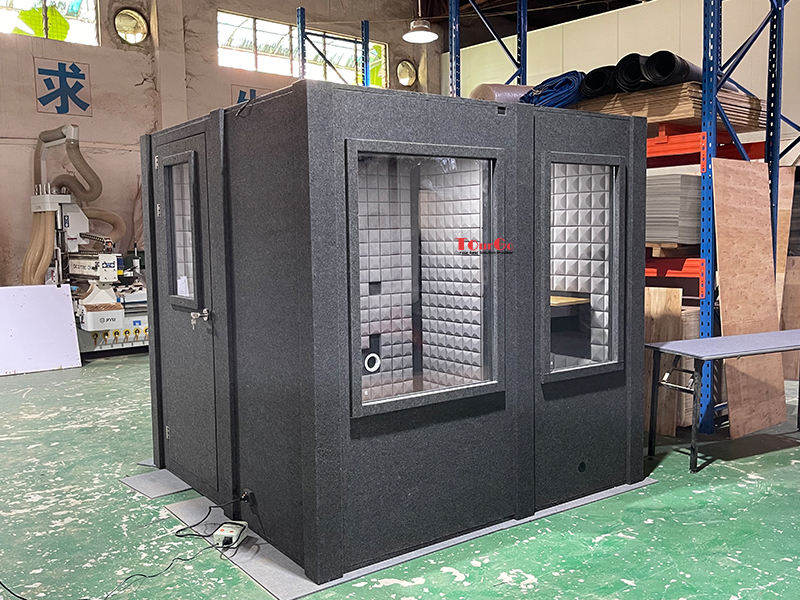

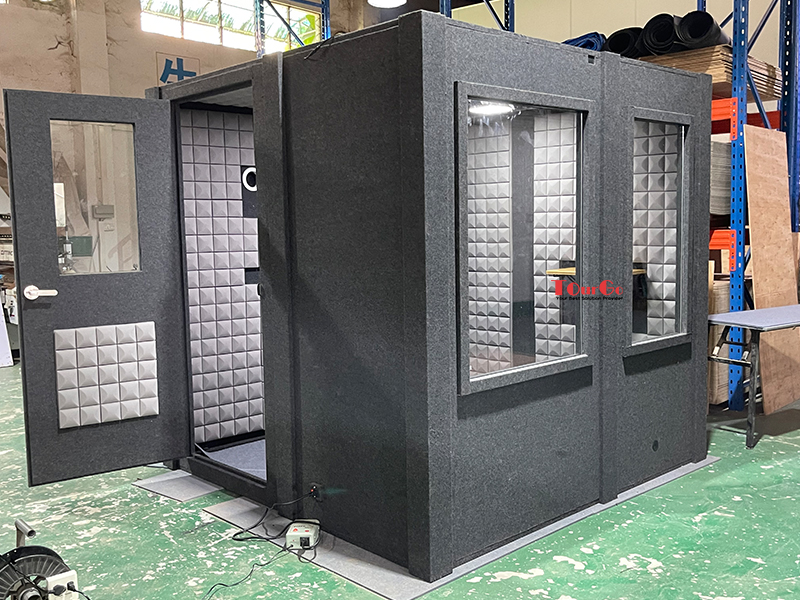

Customized Sound Proof Booth Acoustical Audiology Hearing Test Booth
This attractive Audiology Basic package is the ideal controlled-screening environment for you and your patients. This booth meets all ANSI and OSHA standards for hearing conservation programs and other required hearing tests. Plus, it’s simple to build, easy to relocate, and will fit nice inside of your office.
|
Product Type:
|
Studio Recording Booth
|
||
|
Lighting System
|
4000K natural light / 150Lsx
|
||
|
Power Supply System
|
110-240V/50Hz & 12V-USB
|
||
|
External size
|
127*189*211cm
|
||
|
observation window size
|
16″ x 30″ Door Window
|
||
|
Thickness of the wall
|
10cm(single wall)
|
||
|
Material
|
sound insulation cotton, sound absorbing cotton, sound insulation felt,
metal sound insulation felt, large core board, sound insulation solid wood, aluminum-plastic panel. |
||
|
Exhaust System
|
50W，Low noise and refreshing internal air in 3-minute operating efficiency
|
||
|
Sound insulation
|
30-35db
|
||
|
Package
|
Wood case
|
||
……
TourGo Booth remote fan units have a 38dB noise rating. This slight noise can be eliminated by positioning each fan into an Exterior Fan Silencer (EFS). The number of EFS units needed depends on the size of the booth and the number of ventilation systems required.
LED Lights are intended to provide customers with basic startup lighting. It is understood that most customers will ultimately purchase and install lighting fixtures more suitable to their individual needs and desires. One or two lights are provided depending on the enclosure’s size.
Effective air circulation is accomplished by acoustically engineered, detachable ventilation systems which circulate air at a rate of 80 CFM (cubic feet per minute). The number of systems required depends on the size of the TourgoBooth unit. Roof-mount ventilation systems are also available for most models.
Office desk is designed to help you maximize your workspace. Two USB outlets and two 120-volt outlets are conveniently attached to the desk so you can plug right in. The 30″ wide red oak desk is attached to a backing panel with adjustable hinges. This gives you the flexibility to fold the desk down and make more space in the booth when you decide not to use it. Can be installed on the inside or outside of your Booth.
Cable Passages Access for communications such as microphones, headphones, speakers, and electrical cables is accomplished by way of slotted rubber cable passage plugs. Simply remove the plug, insert the cable(s) into the slots and re-insert the plug into the wall. Two or more cable passage plugs are provided with each booth and each will accommodate multiple cables. The number of cable passages depends on the size of the unit.Also, an additional cable passage is located at the base of each optional window component.
Our Standard size
|
Model
|
Dimensions(cm)
|
|
TG81112S
|
W81xD112xH211cm
|
|
TG112112S
|
W112xD112xH211cm
|
|
TG127127S
|
W127xD127xH211cm
|
|
TG112158S
|
W112xD158xH211cm
|
|
TG127188S
|
W127xD188xH211cm
|
|
TG112218S
|
W112xD218xH211cm
|
|
TG127249S
|
W127xD249xH211cm
|
|
TG158158S
|
W158xD158xH211cm
|
|
TG158218S
|
W158xD218xH211cm
|
|
TG189189S
|
W189xD189xH211cm
|
|
TG189250S
|
W189xD250xH211cm
|
|
TG218218S
|
W218xD218xH211cm
|
|
TG264218S
|
W264xD218xH211cm
|
|
TG249249S
|
W249xD249xH211cm
|
|
TG264264S
|
W264xD264xH211cm
|
|
TG218325S
|
W218xD325xH211cm
|
|
TG249310S
|
W249xD310xH211cm
|
