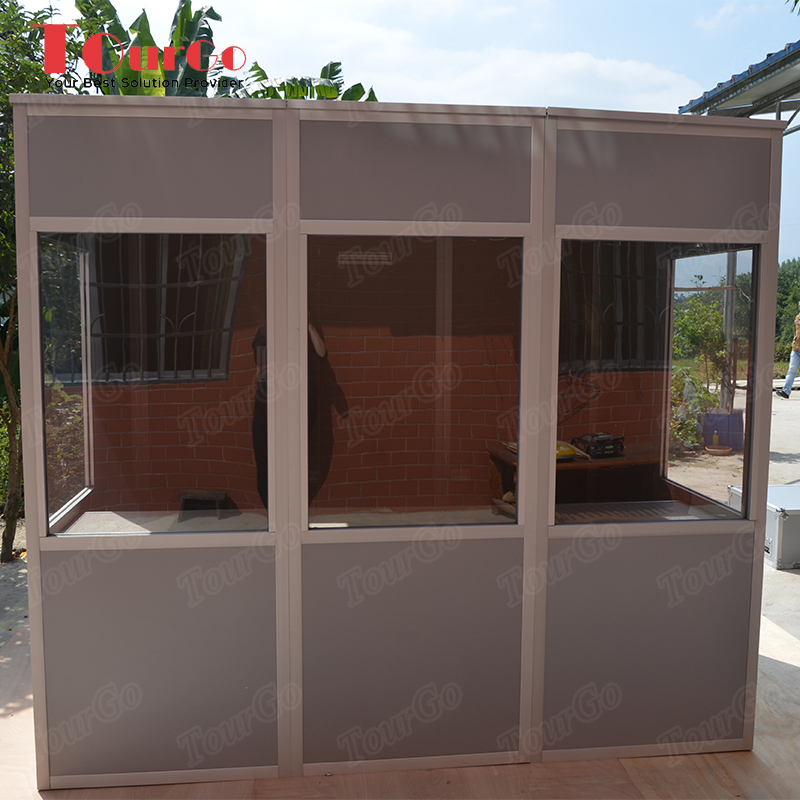

TourGo mobile lightweight three person interpreter translation booth with soundproof booths
www.tourgosolution.com
Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.
The light weight interpreter booths TG-3LBOOTHS is a light weight, modular, easy to mount interpreter booth for 3 persons, but can be extended for up to 4 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The TG-3LBOOTHS complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 2 cable ducts.
Simultaneous Interpretation Booths for Three Person Configuration:
1. sound insulation door: Easy opening 180 angle without noise; Outward;
2. windows: Size window is more than 670*800mm (H); Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).
3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).
4. work surface: 232cm(L)*50cm(W)*73cm(H); Can bear weight of all equipments
5. cable passage: Dia. 5cm
6. standard 10 wall panels(5 of which have windows with acrylic and 1 door panels), 3 roof panels , 2 working table. the booth also have 2 cable ducts
Three person translation booth Capacity of sound-proof
The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB
Simultaneous Interpretation Booths for Three Person Benefit:
A. Easy installation, can be performed by 1-2 person
B. Very comfortable working environment
C. Clear view window (acrylic)
D. Durable build
E. The table is easy to install without using tools at all
F. Good looking and Comfortable
G. Suitable for all types for conference systems
Simultaneous Interpretation Booths for Three Person Specification:
Standard suited for 3 persons
Standard size:W2400xD1600xH2000 mm
Weight approx. 280KG
Standard 15 panel configuration
Extendable up to 4 persons
Ventilation system integrated in roof panels
Outer Materials is high density plywood coated with fire-retardant paint
light grey color, other colors are available on demand.
Detailed pictures

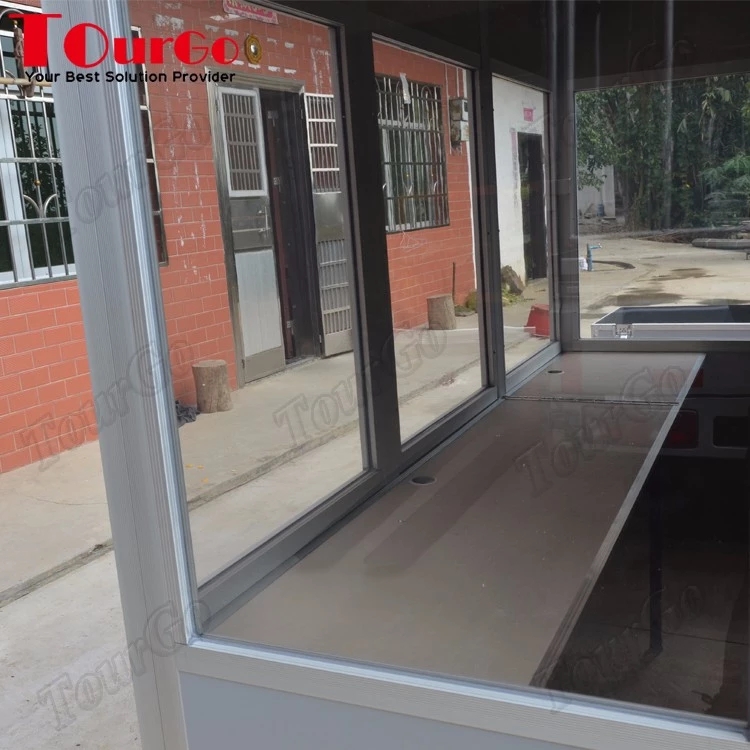

Working table:232x50cm, Height：74cm from ground to table surface
Cable passage: 14x5cm, and air inlet

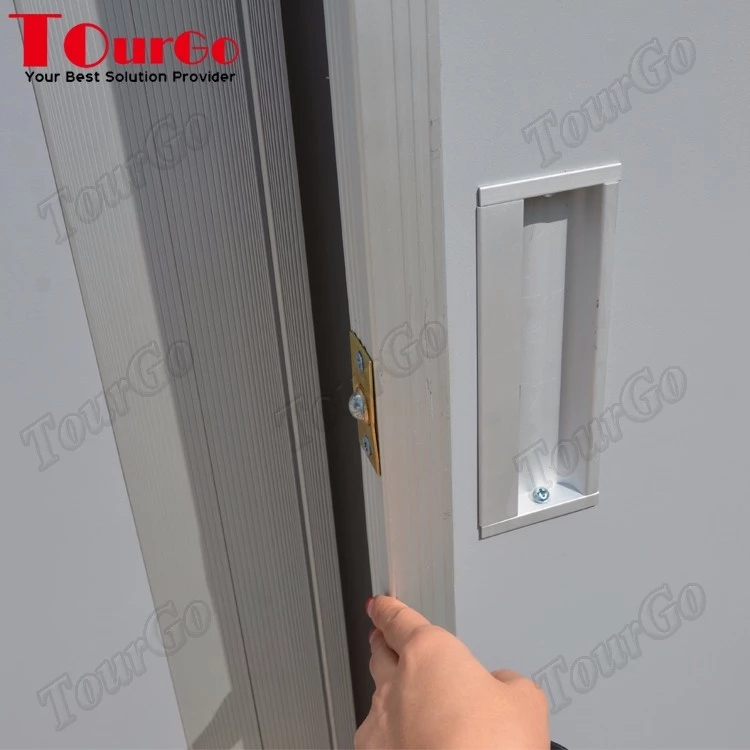

Open outward door with the silent hinge

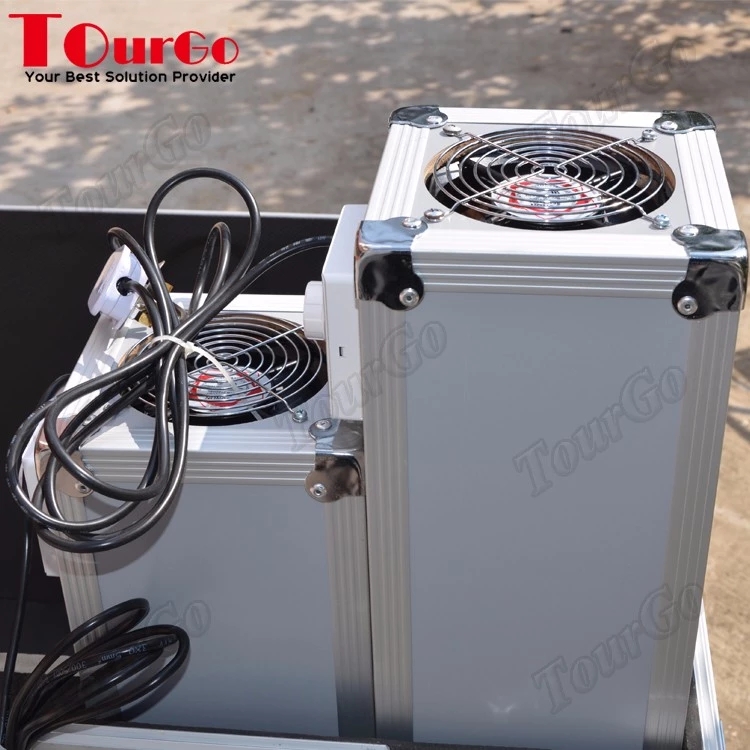

Ventilation system: 110~240V, 50/60Hz, renews the air at least 8 times per hour, less than 35dB

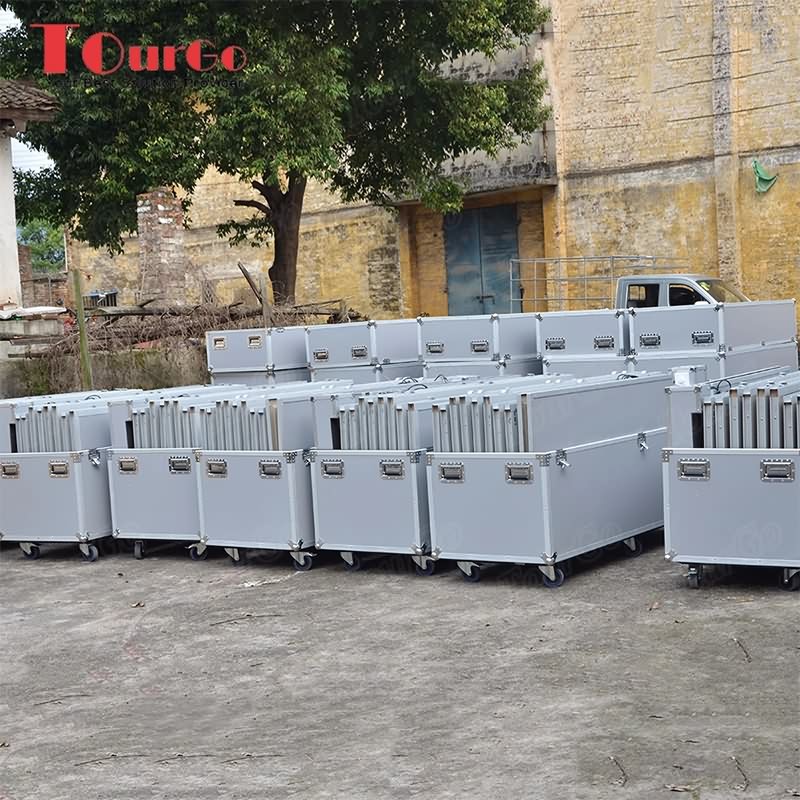

Simultaneous Interpretation Booths for Three Person Package(need two flight case) :
Hard flight cases for standard Two person Booths:
Dimensions :W2080xD600xH1110 mm
Flight cases weight :75kg
Package flight cases for Extension accessories:
Dimensions :W2060xD370xH1040 mm
Flight cases weight :30kg
Post time: Jun-27-2018
