Tourgo Speaker Towers Truss for line Array Speaker

Tourgo Speaker Towers for line Array Speaker

Tourgo medium duty speaker towers truss are specially used as a support of line array of line array speakers .

It is made of Aluminum Spigot Truss, Square 300mm*300mm/50*3mm/20*2mm and with a loading capacity of 1000kg And a maximum lifting height of 9m

Specification :

300mm*300mm Spigot Truss ;Main Tube:50×3.0 mm.
Diagonal Tube 20×2,0 mm.;Materials:6082-T6;Load-baring:1000kg

Complete Kits Description :

• 1. 300mm*300mm Square Truss 2M –Qty 4pcs
• 2. 300mm*300mm Square Truss 1M –Qty 1pc

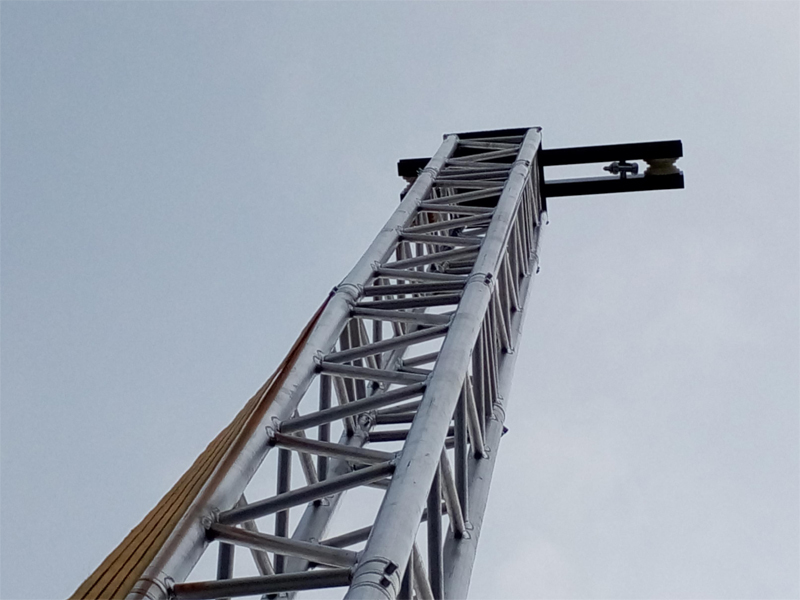

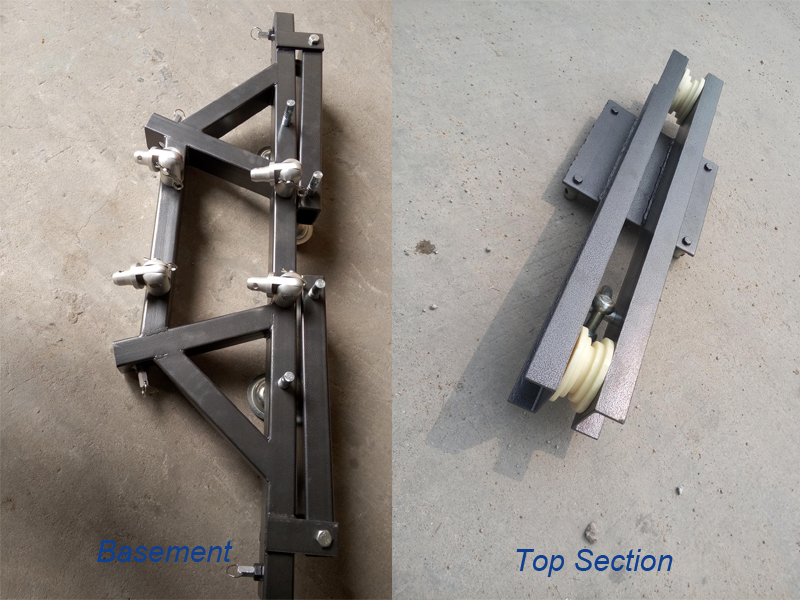

• 3. Top Section–Qty 1pc

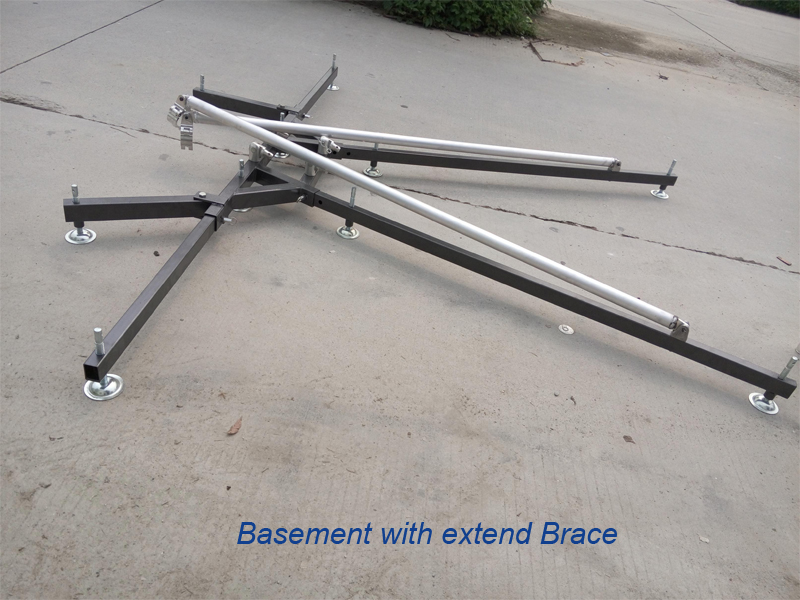

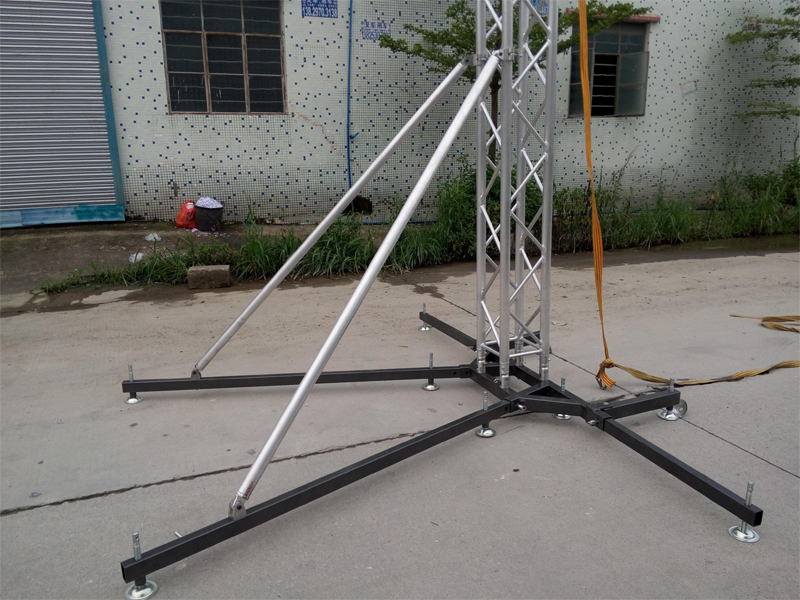

• 4. Basement with extend Brace –Qty 1pc
• 5. Stabiliser Sections–Qty 2pcs
• 6. Hand Hoist :load-bearing:2T–Qty 1pc
• 7. Chain: 20M–Qty 1pc

Technical Specifications:

• Max. Overall height : 9m(Other Heights optional)
• Max.lifting height : 9m
• Max.Loading capacity: 1000kg(2200lbs)
• Max surface load front: 5m sqm
• Max.surface load side: 2.5 sqm
• Max windspeed: 20,7m/s(46.3mph)
• System weight: 415kg

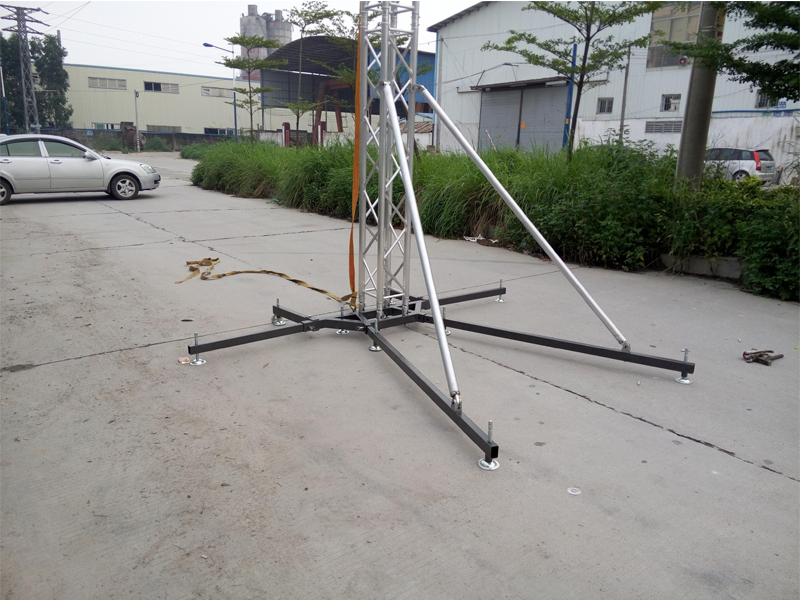

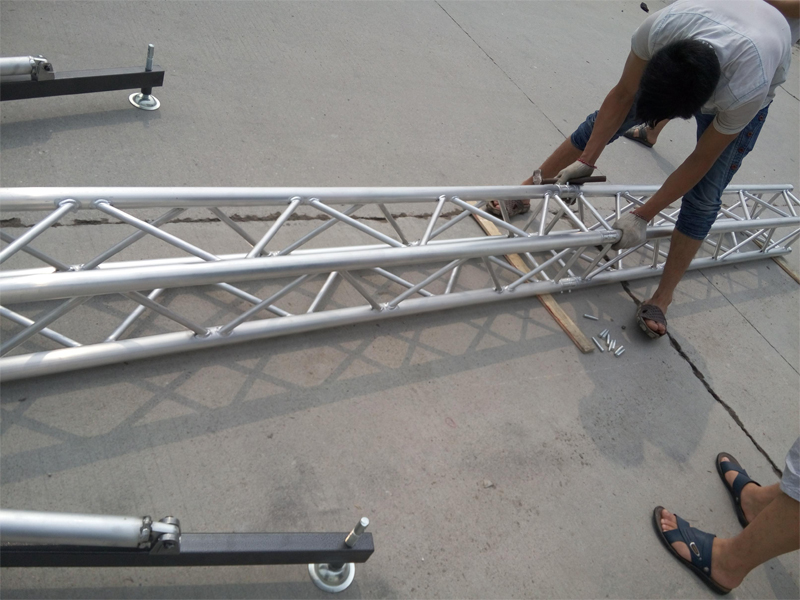

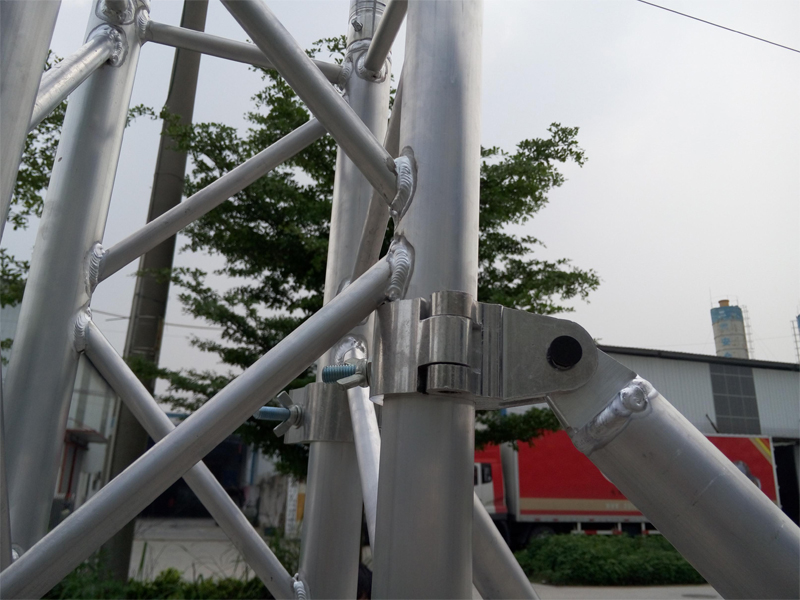

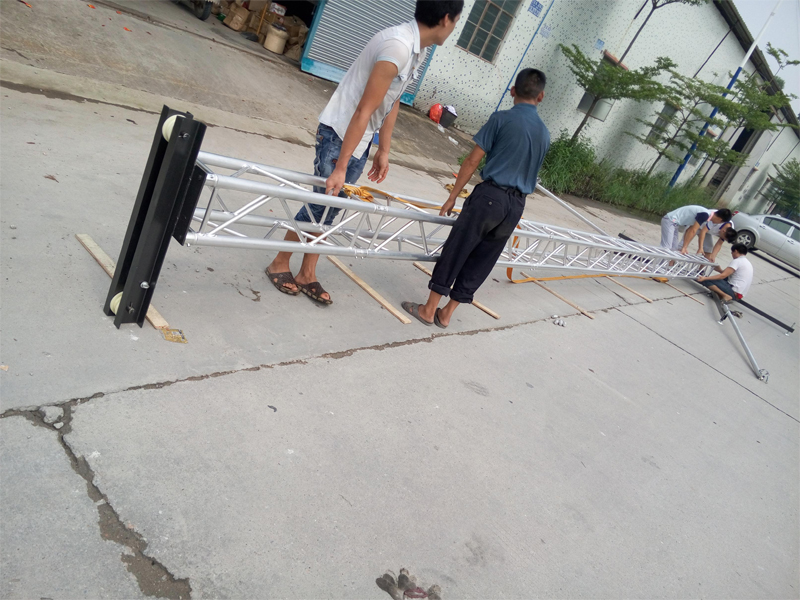

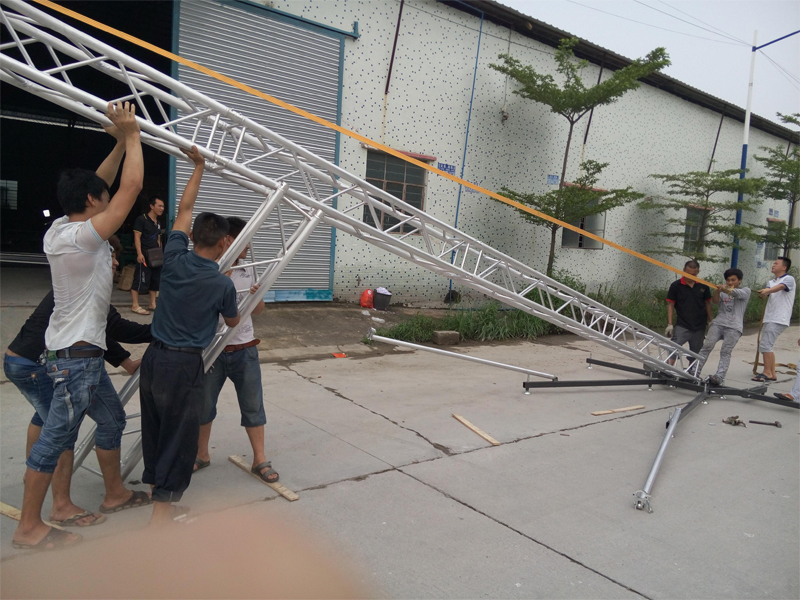

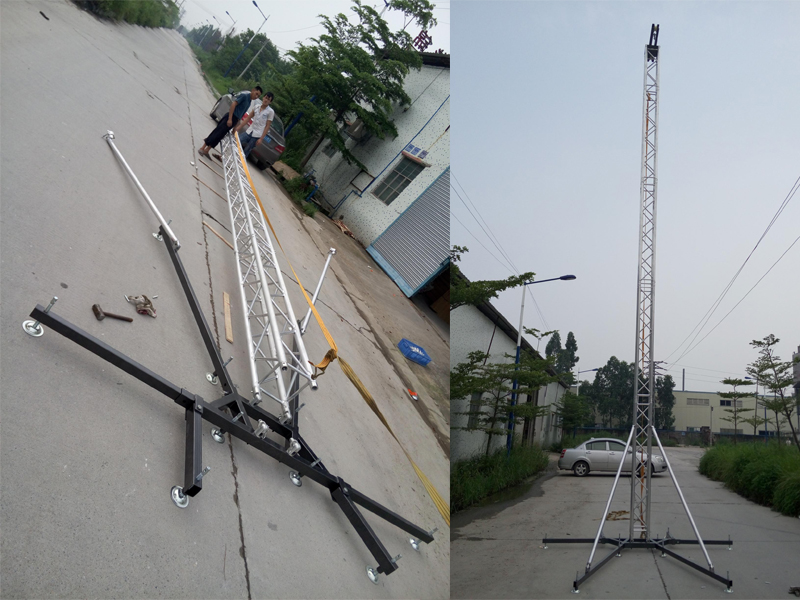

Speaker Towers Photos display :
