1-Channel Guard Dog Cable Protector Ramp for 0.75″ diameter cable

1-Channel Guard Dog Cable Protector Ramp for 0.75″ diameter cable
  • guard-dog-1-channel-cable-protector
  • Cable-Protector-Ramp
  • Guard-Dog-Cable-Protector-Ramp
  • Cable-Protector
  • Cable-Ramp
  • Guard-Dog-Cable-Ramp

Product Model : TG-GD1X75-ST

Product Features : Protects cables and hoses up to 0.75" in diameter
Integrated Dog-Bone Connectors join multiple cable protectors, creating any length
Easy cable placement with hinged lid
Patented 5-bar tread surface provides maximum traction
Available with black or orange lid

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

1-Channel Guard Dog Cable Protector Ramp

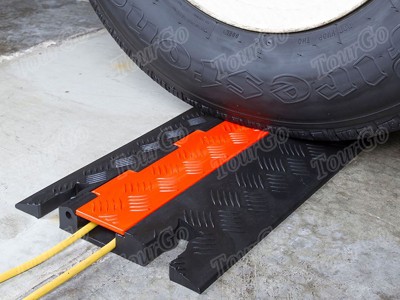

The single-channel Guard Dog Low Profile Cable Protector protects cables and hoses up to 0.75″ in diameter from pedestrian and vehicle traffic up to 26,000 lbs per axle. Available with an orange or black reinforced lid, this cable ramp features a modular design with integrated Dog Bone connectors that link multiple ramps together to protect long cable runs.

  • Protects 0.75″ diameter cables and hoses
  • Withstands up to 26,000 lbs per axle
  • Single-channel ramp
  • All-weather polyurethane construction weighs 7.8 lbs

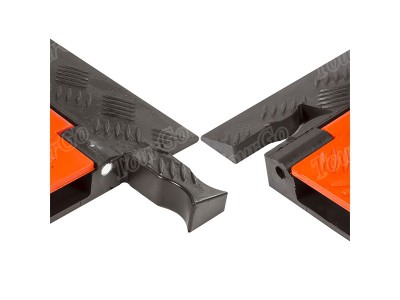

  • Modular interlocking design with Dog Bone connectors allows multiple units to be connected

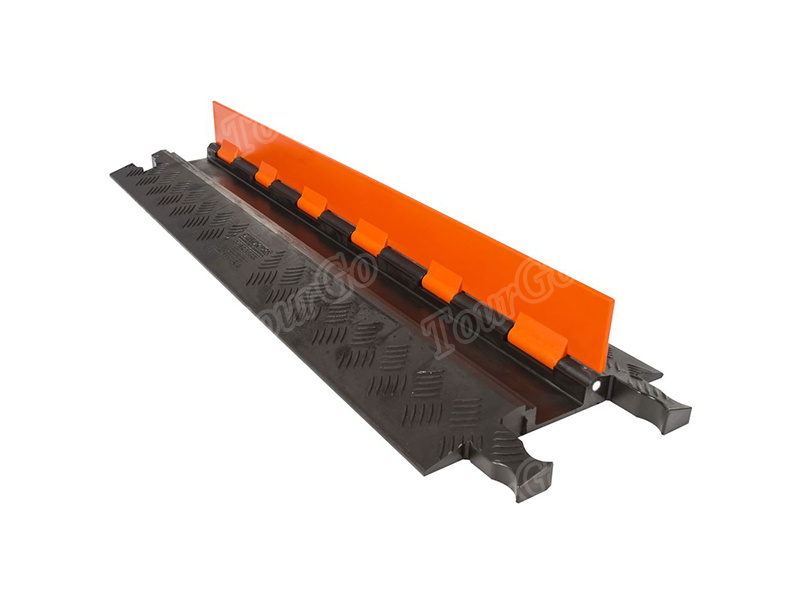

The Guard Dog line of low-profile cable protectors, from Checkers Industrial Safety Products, are the most compact top-loading cable protectors on the market. This single-channel cable ramp protects a cable or hose up to 0.75″ in outside diameter. The patented five-bar tread surface provides maximum traction for both pedestrians and vehicles. Available in black or orange, the reinforced, hinged lid makes it easy for you to simply drop your cable into the channel. Dog Bone connectors allow multiple cable protectors to be joined together to protect long runs of cabling.

Features

  • Protects cables and hoses up to 0.75″ in diameter
  • Integrated Dog-Bone Connectors join multiple cable protectors, creating any length
  • Easy cable placement with hinged lid
  • Patented 5-bar tread surface provides maximum traction
  • Available with black or orange lid
  • Previous:
  • Next:

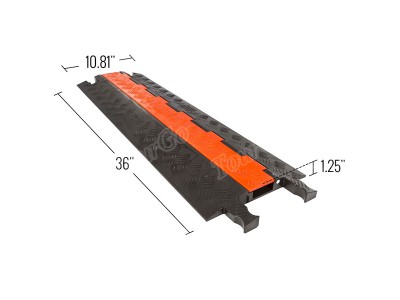

  • 1-Channel Guard Dog Cable Protector Ramp Specifications

    0.75″

    26,000 lbs per axle

    1

    7.8 lbs

    Polyurethane

    36″

    10.81″

    1.25″

    Dog Bone

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?



    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.



    2. Does Tourgo company provide the OEM service?



    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!



    3. Does Tourgo company offer warranty for the sold products?



    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.



    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?



    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.



    5. What is the mean of Alphabet “U” in rack case catalog?



    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).



    6. I want to distribute your products in my country. How can I become a distributor ?



    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.



    7. What is the MOQ for your products?



    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products



    8. Can I get any discount for my order?



    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.



    9. What is your payment term, delivery time? Do you have the reliable freight agent?



    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.



    10. Will you send the drawing of the custom product for our confirmation before the production?



    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
