2-Channel Right Turn Guardian Cable Protector for 1.125″ diameter cables

2-Channel Right Turn Guardian Cable Protector for 1.125″ diameter cables
  • cable-protector-right
  • 2-channel-Cable-Protector
  • Cable-Protector
  • Guardian-Cable-Protector

Product Model : TG-CP-5R

Product Features : Protects two cables around a 45° curve
Hooks securely to the Dual Channel Cable Protector with interlocking connectors
Dual 28.5mm x 28.5mm (1.125" x 1.125") cable channels
Bright yellow hinged safety lid
12,000 lb. capacity per axle (6,000lb capacity per wheel) can support the weight of industrial equipment such as forklifts
Gentle 28° incline approach angle
Manufactured with heavy duty weather resistant commercial grade rubber with a PVC flap
Protected by a 1 year manufacturer warranty

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

2-Channel Right Turn Guardian Cable Protector for 1.125″ diameter cables

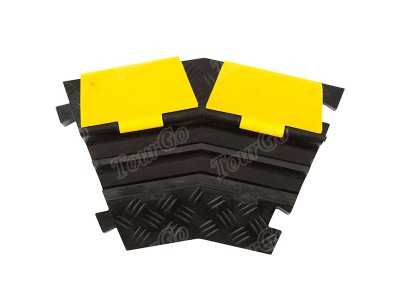

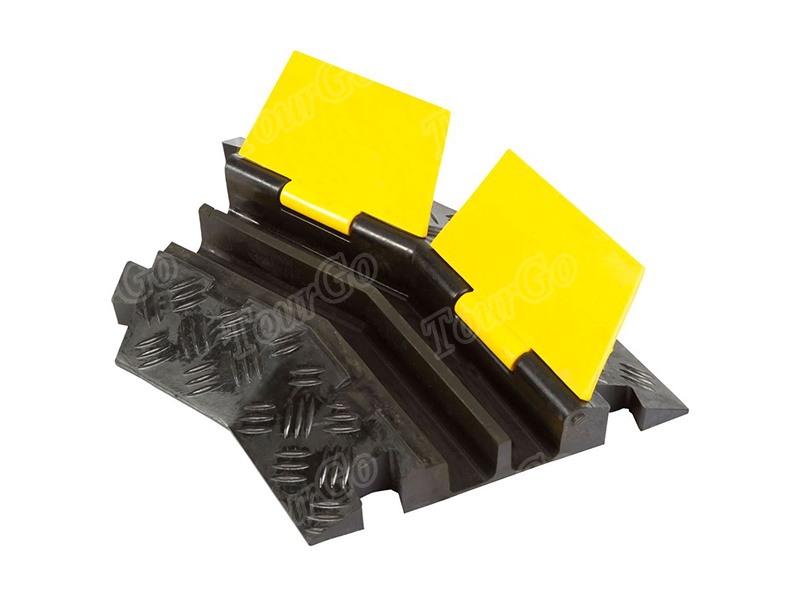

This 45° right-turn two-channel cable protector will help you build the proper cable ramp system for your needs by creating curves around corners or other obstacles in your facility. Pair these rubber right-turn cable ramps with additional straight sections and turn pieces for a safe cable protection solution. The Guardian right-turn piece is designed to protect up to two 1.125″ diameter wires, cables, or small hoses from damage caused by vehicles weighing up to 12,000 lbs per axle.

  • Protects hoses and cables up to 1.125″ diameter
  • Withstands up to 12,000 lbs per axle
  • Two channels
  • Lightweight, heavy-duty rubber construction weighs 4.5 lbs
  • Modular interlocking design with trapezoid connectors allows multiple units to be connected

When cables need to curve around an object or warehouse racking, this right-hand turn piece for the Guardian Two-Channel Cable Protector protects and guides cables around a 45° bend. The right-turn section features the same interlocking trapezoid connection system as the dual-channel cable protector, to link multiple straight and turn sections into a complete cable management system. Like the Dual Channel Cable Protector, each turn piece is has two 1.125″ diameter cable channels and a gentle 28° approach angle. Made with a heavy-duty commercial-grade rubber base and PVC flap, the cable protector right-turn section can support up to 12,000 lbs per axle. It’s covered by a one-year manufacturer’s warranty.

Features

  • Protects two cables around a 45° curve
  • Hooks securely to the Dual Channel Cable Protector with interlocking connectors
  • Dual 28.5mm x 28.5mm (1.125″ x 1.125″) cable channels
  • Bright yellow hinged safety lid
  • 12,000 lb. capacity per axle (6,000lb capacity per wheel) can support the weight of industrial equipment such as forklifts
  • Gentle 28° incline approach angle
  • Manufactured with heavy duty weather resistant commercial grade rubber with a PVC flap
  • Protected by a 1 year manufacturer warranty
  • Previous:
  • Next:
  • 2-Channel Right Turn Guardian Cable Protector for 1.125″ diameter cables Specifications

    1.125″

    12,000 lbs per axle

    2

    4.5 lbs

    Rubber

    7.75″

    10″

    2″

    Trapezoid
