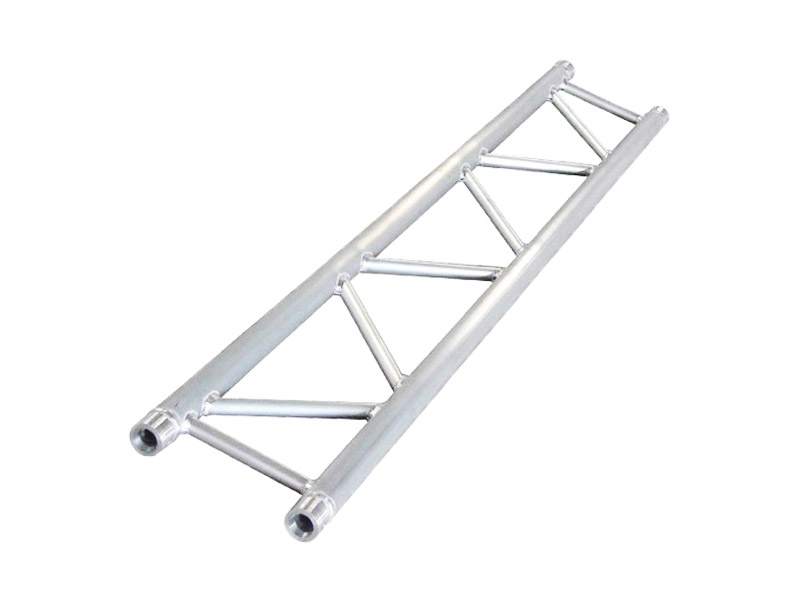

220mm iBeam Truss

F22 iBeam Truss (220mm)
8 3/5″ (220mm) width, 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m


FABRICATED BY CERTIFIED TUV WELDERS
EQUIPPED WITH CONNECTING HARDWARE

8 3/5″ (220mm) OVERALL WIDTH
1 2/5″ (35mm) OUTER DIAMETER TUBING
1/3″ (20mm) DIAGONAL BRACING
0.06″ (1.6mm) WALL THICKNESS
T6 6082 MATERIAL


MODEL Description
IB-F22-0.5 1.64ft (0.5M) iBeam Truss
IB-F22-1.0 3.28ft (1.0M) iBeam Truss
IB-F22-1.5 4.92ft (1.5M) iBeam Truss
IB-F22-2.0 6.56ft (2.0M) iBeam Truss
IB-F22-2.5 8.20ft (2.5M) iBeam Truss
IB-F22-3.0 9.84ft (3.0M) iBeam Truss
IB-F22-3.5 11.48ft (3.5M) iBeam Truss
IB-F22-4.0 13.12ft (4.0M) iBeam Truss
IB-F22-4.5 14.76ft (4.5M) iBeam Truss
IB-F22-5.0 16.40ft (5.0M) iBeam Truss



Related Products:

F22 Corners

F22-2W-C45H 2WAY 45 DEG Horizontal
F22-2W-C45V 2WAY 45 DEG Vertical
F22-2W-C60H 2WAY 60 DEG Horizontal
F22-2W-C60V 2WAY 60 DEG Vertical
F22-2W-C90H 2WAY 90 DEG Horizontal
F22-2W-C90V 2WAY 90 DEG Vertical
F22-2W-C120H 2WAY 120 DEG Horizontal
F22-2W-C120V 2WAY 120 DEG Vertical
F22-2W-C135H 2WAY 135 DEG Horizontal
F22-2W-C135V 2WAY 135 DEG Vertical
F22-3W-H 3WAY 90 DEG Horizontal
F22-3W-V 3WAY 90 DEG Vertical
F22-T-H “T” CORNER 3WAY 90 DEG Horizontal
F22-T-V “T” CORNER 3WAY 90 DEG Vertical
F22-CROSS-H Cross Corner 4WAY 90 DEG Horizontal
F22-CROSS-V Cross Corner 4WAY 90 DEG Vertical
F22-4W-V 4WAY VERTICAL
F22-4W-H 4WAY HORIZONTAL

F22  CIRCLE  Horizontal

F22-1M-90H DIA.1M 90 DEG Horizontal
F22-1M-180H DIA.1M 180 DEG Horizontal
F22-2M-90H DIA.2M 90 DEG Horizontal
F22-2M-180H DIA.2M 180 DEG Horizontal
F22-3M-60H DIA.3M 60 DEG Horizontal
F22-3M-90H DIA.3M 90 DEG Horizontal
F22-3M-180H DIA.3M 180 DEG Horizontal
F22-4M-45H DIA.4M 45 DEG Horizontal
F22-4M-60H DIA.4M 60 DEG Horizontal
F22-4M-90H DIA.4M 90 DEG Horizontal
F22-5M-45H DIA.5M 45 DEG Horizontal
F22-5M-60H DIA.5M 60 DEG Horizontal
F22-5M-90H DIA.5M 90 DEG Horizontal
F22-6M-30H DIA.6M 30 DEG Horizontal
F22-6M-45H DIA.6M 45 DEG Horizontal
F22-6M-60H DIA.6M 60 DEG Horizontal
F22-7M-30H DIA.7M 30 DEG Horizontal
F22-7M-45H DIA.7M 45 DEG Horizontal
F22-7M-60H DIA.7M 60 DEG Horizontal
F22-8M-30H DIA.8M 30 DEG Horizontal
F22-8M-45H DIA.8M 45 DEG Horizontal
F22-8M-60H DIA.8M 60 DEG Horizontal
F22-9M-30H DIA.9M 30 DEG Horizontal
F22-9M-45H DIA.9M 45 DEG Horizontal
F22-9M-60H DIA.9M 60 DEG Horizontal
F22-10M-30H DIA.10M 30 DEG Horizontal
F22-10M-45H DIA.10M 45 DEG Horizontal

F22  CIRCLE  VERTICAL

F22-1M-90V DIA.1M 90 DEG Vertical
F22-1M-180V DIA.1M 180 DEG Vertical
F22-2M-90V DIA.2M 90 DEG Vertical
F22-2M-180V DIA.2M 180 DEG Vertical
F22-3M-60V DIA.3M 60 DEG Vertical
F22-3M-90V DIA.3M 90 DEG Vertical
F22-4M-60V DIA.4M 60 DEG Vertical
F22-4M-90V DIA.4M 90 DEG Vertical
F22-5M-45V DIA.5M 45 DEG Vertical
F22-5M-60V DIA.5M 60 DEG Vertical
F22-5M-90V DIA.5M 90 DEG Vertical
F22-6M-30V DIA.6M 30 DEG Vertical
F22-6M-45V DIA.6M 45 DEG Vertical
F22-6M-60V DIA.6M 60 DEG Vertical
F22-7M-45V DIA.7M 45 DEG Vertical
F22-7M-60V DIA.7M 60 DEG Vertical
F22-8M-30V DIA.8M 30 DEG Vertical
F22-8M-45V DIA.8M 45 DEG Vertical
F22-8M-60V DIA.8M 60 DEG Vertical
F22-9M-30V DIA.9M 30 DEG Vertical
F22-9M-45V DIA.9M 45 DEG Vertical
F22-10M-30V DIA.10M 30 DEG Vertical
F22-10M-45V DIA.10M 45 DEG Vertical
