Product Model : TGPM144

Product Features : *With 144 Tri-Color RGB SMD LEDs
*Designed for pixel mapping and video mapping and can be controlled via ArtNet
*Control via DMX 512 also possible
*Ideal for installation in clubs, discotheques and stage sets that want to use a modern lighting and effects system
*The modules can be strung together with the supplied connectors

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

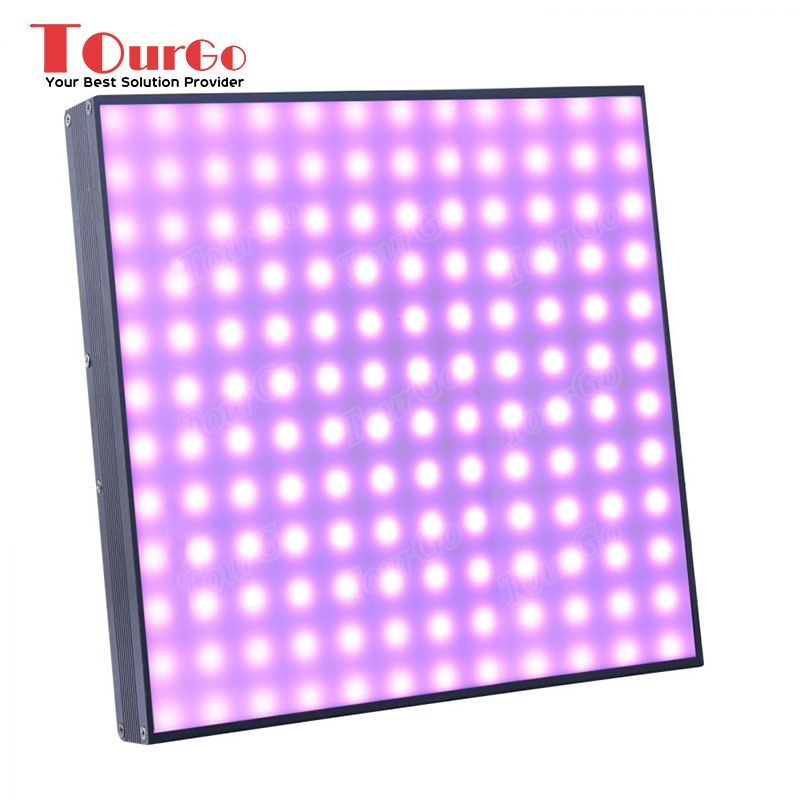

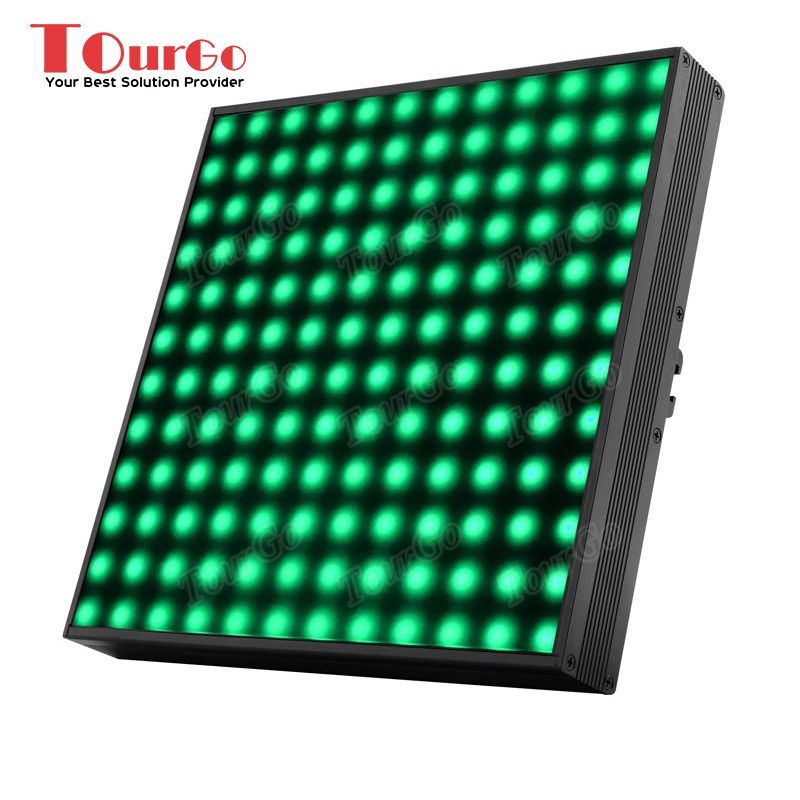

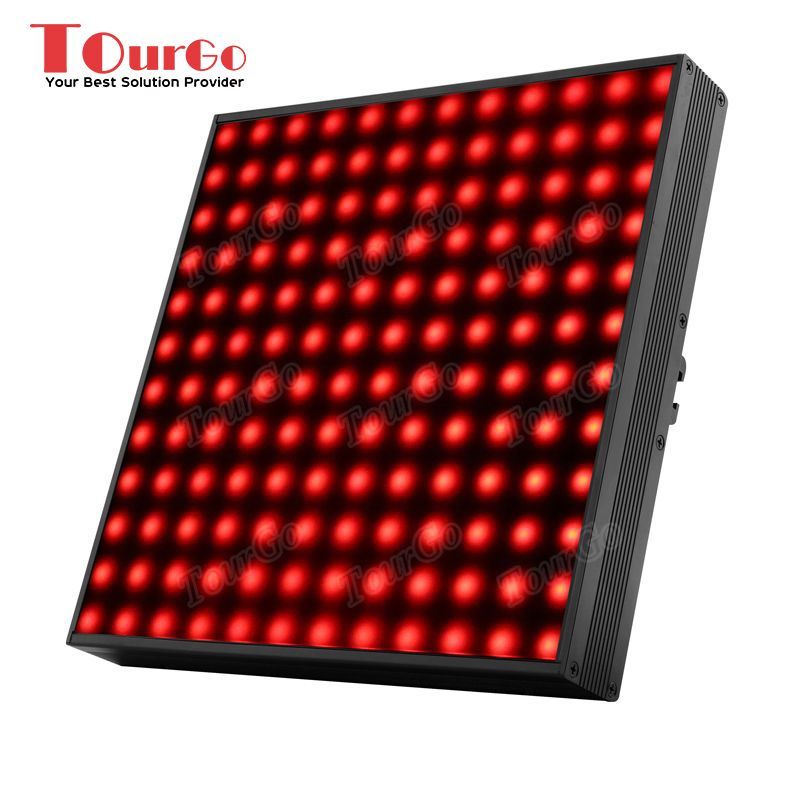

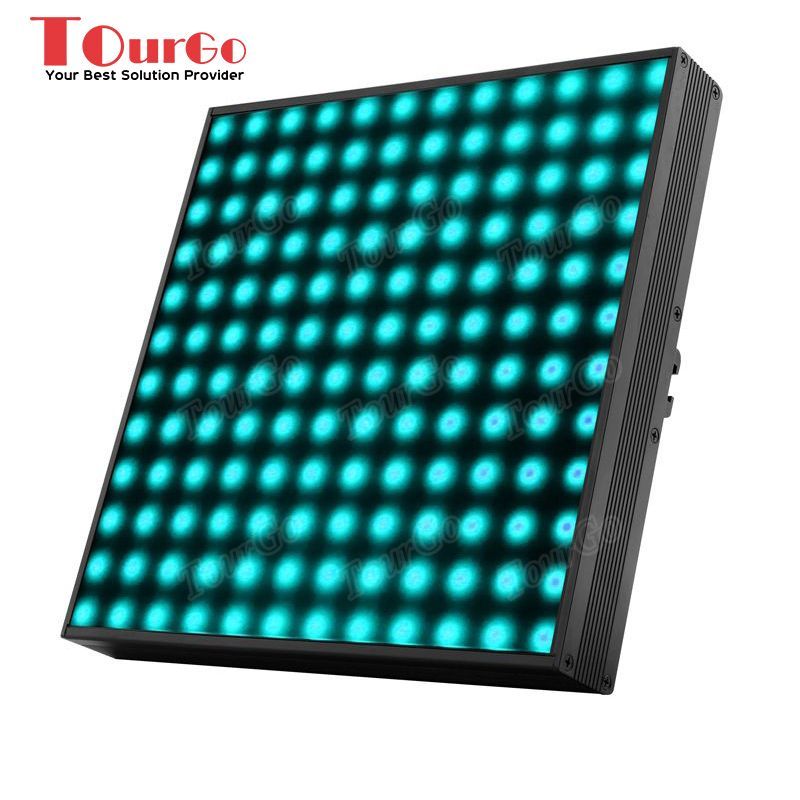

TourGo TGPM144 is a square video and pixel mapping panel with 144 tri-colour SMD 5050 LEDs in a 12 x 12 array, 25 millimeter pixel pitch and wide 120° viewing angle. It provides superb RGB colour rendering, flicker-free performance with a 3,400 Hz refresh rate and includes four interchangeable LED cover plates (clear, frost, milk and black).

TGPM144  is automatically configured and easily controlled using the ArKaos Kling-Net protocol. It is Art-Net 3 compliant and sports 8-channel and 432-channel DMX modes with single pixel control, strobe and dimming functions plus automated standalone modes.

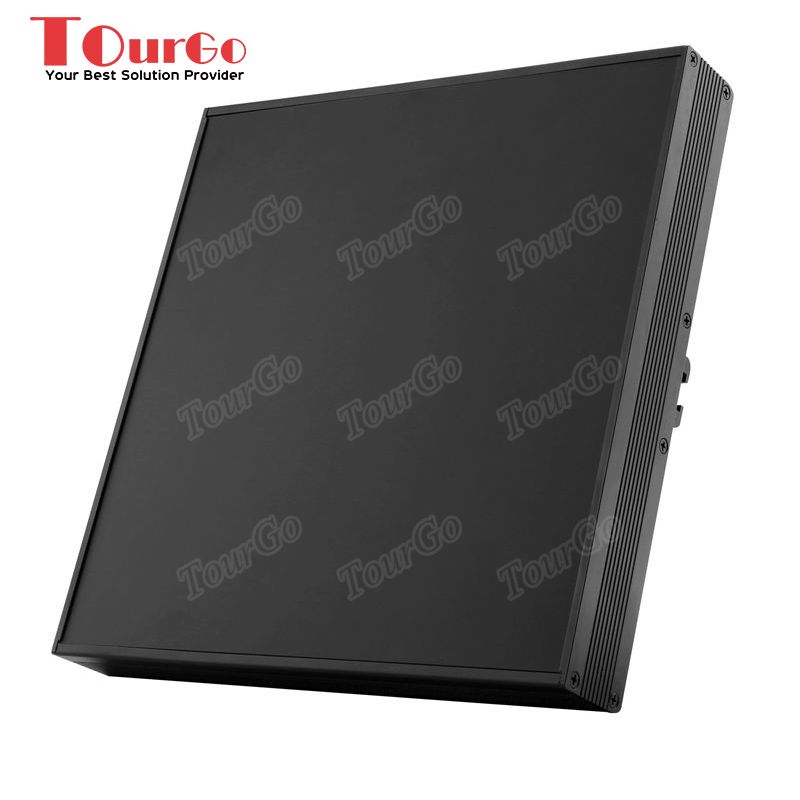

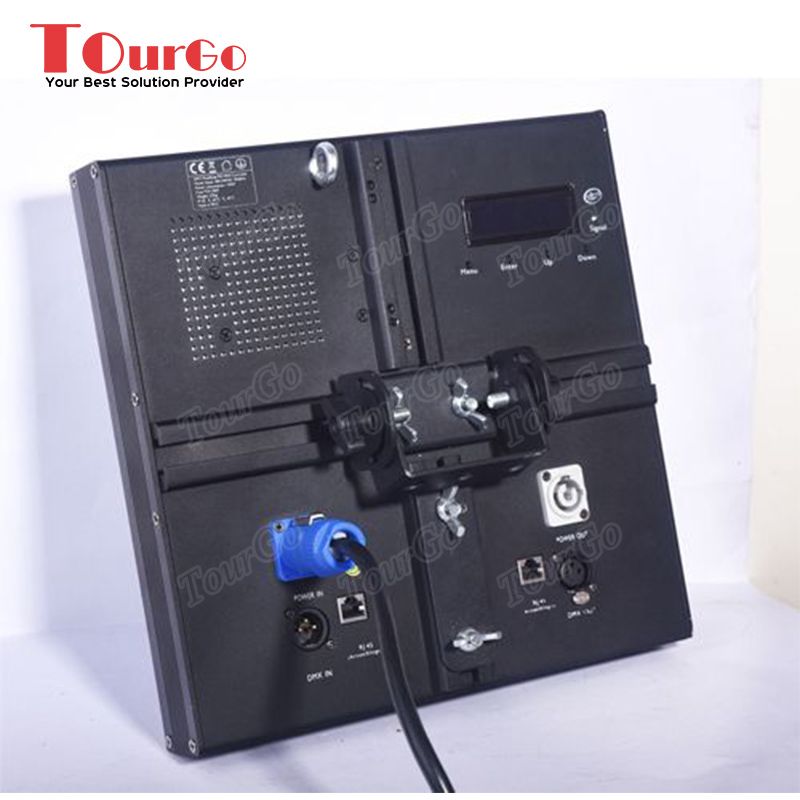

The black anodized aluminium housing features efficient convection cooling and a secure hardware linking system for seamlessly interlocking tile combinations. It integrates 3-pin DMX and RJ45 Ethernet inputs and outputs, blue and white power connectors and a 4-button display for manual configuration. The TGPM144  comes with a power cord and adjustable mounting bracket.



Features:

144 tri-colour SMD 5050 LEDs for excellent colour rendering

25 mm pixel pitch and wide 120° viewing angle

Intuitive pixel mapping and video

Easy control and auto-configuration using ArKaos Kling-Net

Art-Net 3 compliant, 2 DMX and standalone modes

3,400 Hz refresh rate for flicker-free performance

Convection cooling for noiseless operation

Anodized aluminium housing with safety eye

Hardware linking system for seamless tile combinations

Includes clear, frost, milk and black LED cover plates, power cord and adjustable mounting bracket


http://www.tourgosolution.com/products/led-pixel-panel.html

http://www.tourgosolution.com/products/led-pixel-panel.html

http://www.tourgosolution.com/products/led-pixel-panel.html

http://www.tourgosolution.com/products/led-pixel-panel.html

http://www.tourgosolution.com/products/led-pixel-panel.html

http://www.tourgosolution.com/products/led-pixel-panel.html

  • Previous:
  • Next:
  • SPECIFICATIONS:

    Product number: TGPM144

    Product type:LED Lighting Effects

    Type:LED Effect Lights

    Colour spectrum:RGB

    Number of LEDs:144

    LED type:5050 SMD

    Dispersion:120°

    Refresh rate:3400Hz

    DMX input:XLR 3-pin male

    DMX output:XLR 3-pin female

    DMX mode:8-channel, 432-channel

    DMX Functions:colour macro, auto programs, strobe, Single Pixel Control, RGB, Dimmer

    Standalone modes:static colour, auto programs

    Controls:Value Up, Value Down, mode, Enter

    Indicators:LC display

    Operating voltage:100 V AC – 240 V AC, 50 – 60 Hz

    Power consumption:65W

    Power connector:Blue and white power I/O

    Housing material:aluminium

    Cooling:Convection

    Cabinet colour:Black

    Dimensions without mounting bracket:

    Width:300mm

    Height:300mm

    Depth:117mm

    Weight:3,1kg

    Accessories (included):incl. installation material, CAT6 Cable 1,5m

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?



    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.



    2. Does Tourgo company provide the OEM service?



    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!



    3. Does Tourgo company offer warranty for the sold products?



    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.



    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?



    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.



    5. What is the mean of Alphabet “U” in rack case catalog?



    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).



    6. I want to distribute your products in my country. How can I become a distributor ?



    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.



    7. What is the MOQ for your products?



    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products



    8. Can I get any discount for my order?



    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.



    9. What is your payment term, delivery time? Do you have the reliable freight agent?



    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.



    10. Will you send the drawing of the custom product for our confirmation before the production?



    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
