Professional 40 TRI LED SMD 5050 Pixel Mapper and Video Display
Product Detail
Specifications
FAQ
Product Tags

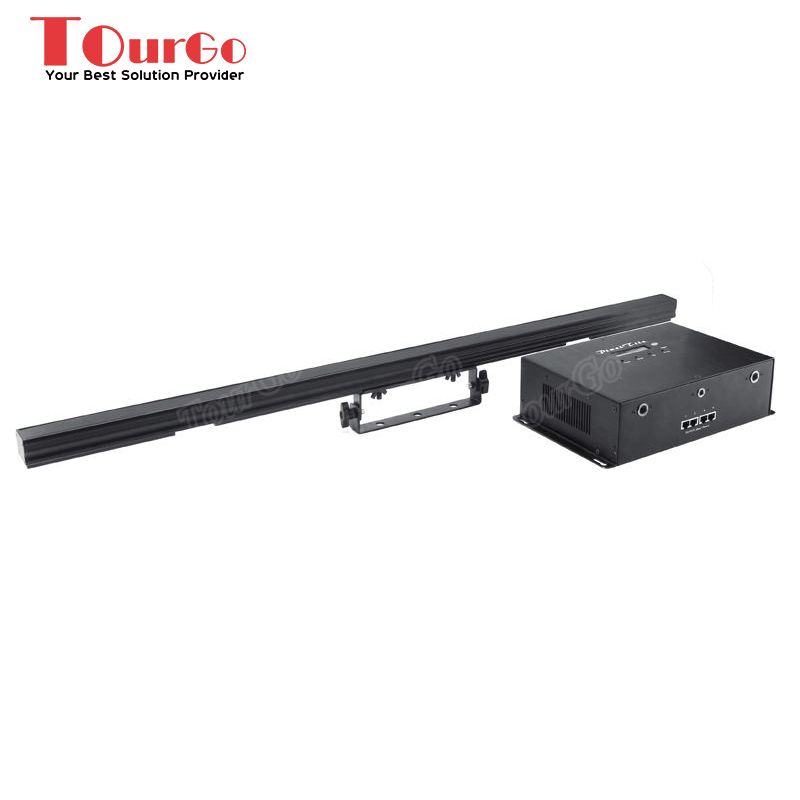

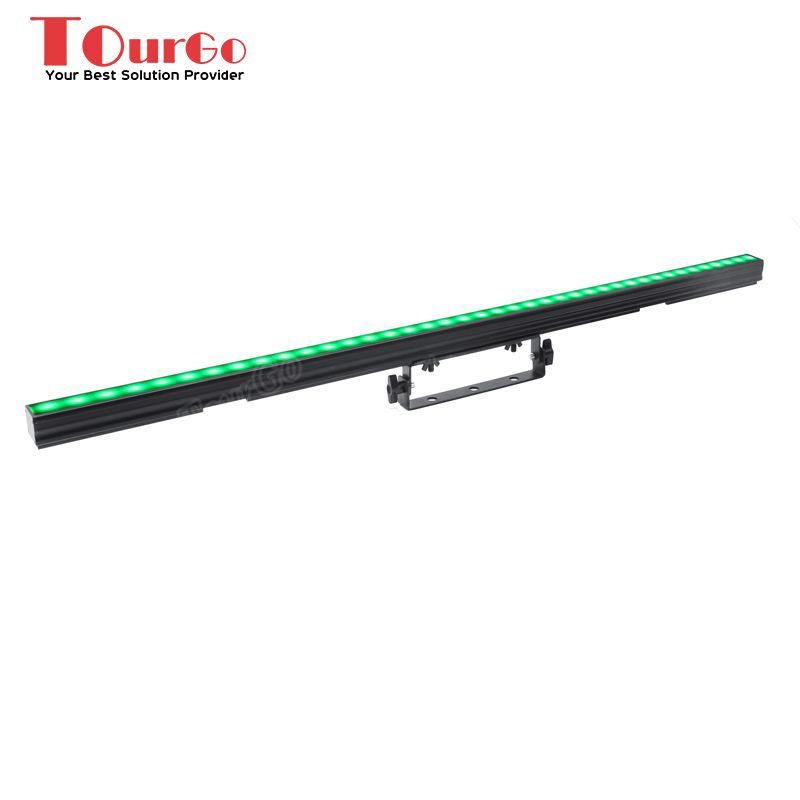

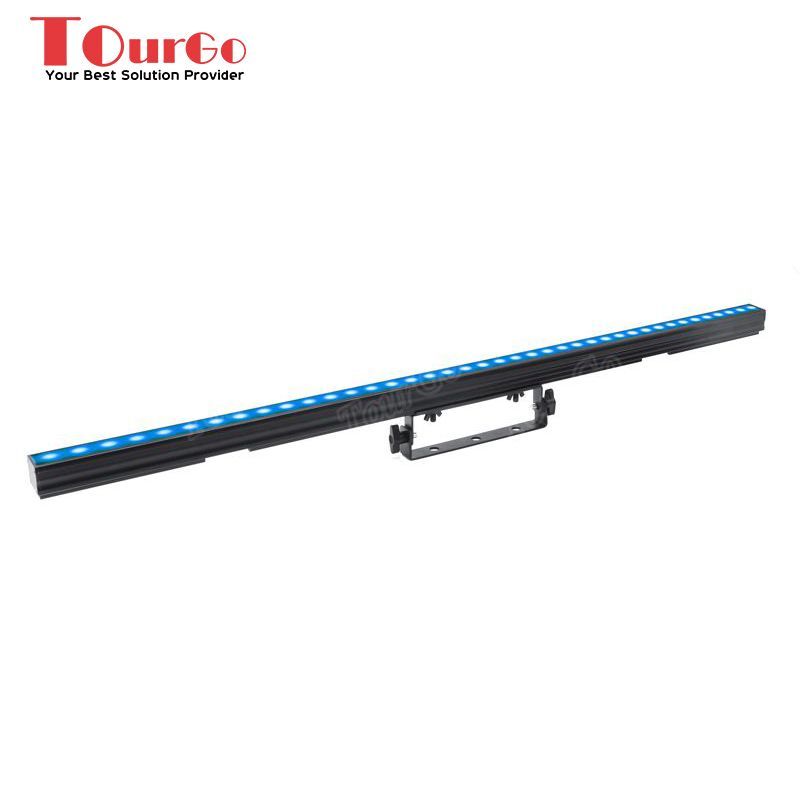

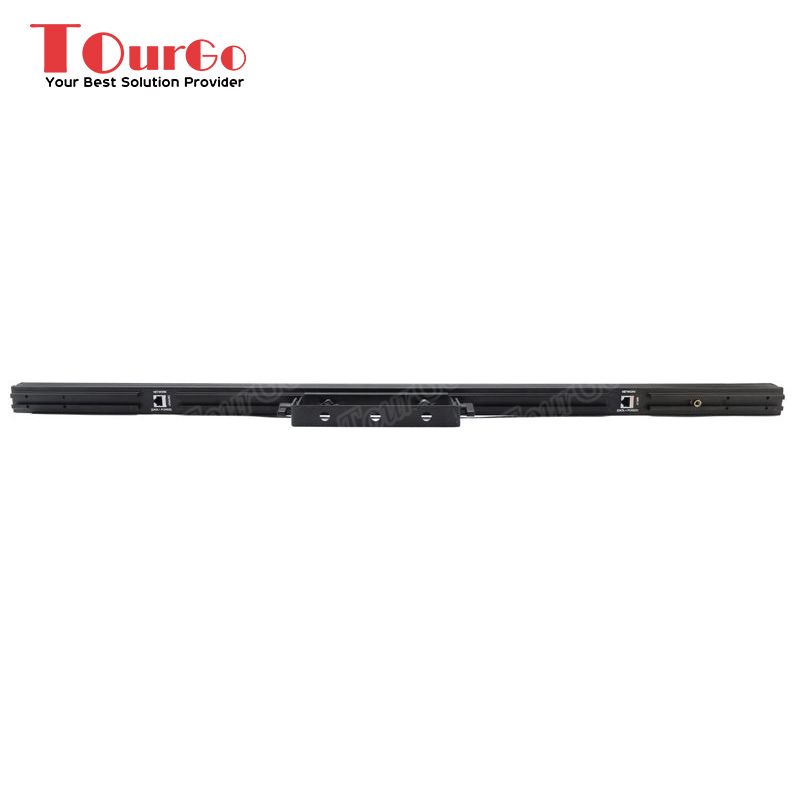

Led Pixel Mapping Strip is a linear LED video fixture for the rental market wih 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white milk included, transparent on demand). Each strip features 40 LED RGB LEDs with individual pixel control, 1 meter long, 120° viewing angle. The mechanics of Led Pixel-Mapping Strip have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking. The external control unit-Led Pixel-MAPPING Strip drive is compatible with Art-Net and Kling-Net &DMX protocol, and runs both signal and power over a RJ45 cables that provides greater stability and connection in daisy chain (up to 16Pcs Led Pixel-Mapping Strip).
Features:
Near-effortless pixel mapping and video one-meter strips, that combine to make a system that sets up in minutes with minimal technical know-how
Easily control each using Art-Net (3.0 compliant) or Arkaos Kling-Net
Quickly configure these slim, one-meter strips and link up to four inline with network cables or create vertical effects with new hardware linking system
Achieve wide viewing angles and excellent color rendering with tri-colored SMD5050 LEDs covered by a smooth diffuser plate
Easily manage configuration and software updates with the network-based remote web server
Works with Arkaos Media Master Express for a plug-n-play system that requires little training to operate
Specifications:
Light Source: Tri -color SMD 5050 LEDs
Luminance: 850 Nits
Pixels/Strip: 40 Pixels
Pixel Pitch: 25 mm
Dedicated Controller: Epix Drive 642
Linking: (4) inline Epix Strip 2.0
Display Refresh Rate: 4.5KHz
Viewing Angle: 120°
IP Rating: IP20
Power and Current: 20W, 0.11A @ 120V 60Hz
Power and Current: 33W, 0.04A @ 208V 60Hz
Power and Current: 39W, 0.03A @ 230V 50Hz
Weight: 4.4lbs (2kg)
Size: 39.4 x 1.4 x 4.6in (1000 x 37 x 118mm)
Approvals: CE, MET, RoHs
1. Why your factory provide not only lighting truss, but also flight case, portable stage, pipe and drape ,ect ?
Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.
Our concept is “ Tourgo , Build your dream” Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.
2. Does Tourgo company provide the OEM service?
Yes, Tourgo could provide the OEM service according to your request.
We have the ten-year designers team, the customized flight case, portable stage, and lighting truss also is available, just need your idea!
3. Does Tourgo company offer warranty for the sold products?
Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.
4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?
Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.
5. What is the mean of Alphabet “U” in rack case catalog?
For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).
6. I want to distribute your products in my country. How can I become a distributor ?
Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.
7. What is the MOQ for your products?
Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products
8. Can I get any discount for my order?
Yeah, you can contact our sales team, depending on the amount of your order
- The products you need
- The exact desired order quantity
- Your desired time frame
- Any special packing instructions
With this information we will get back to you with a quotation.
We also offer limited time promotion, please notice our post in our website.
9. What is your payment term, delivery time? Do you have the reliable freight agent?
The payment term is T/T, Western Union.
Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we try our best to meet your demand. Moreover, we will send your goods pictures to you before the shipping
Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent, we would like to coordinate with them fully.
10. Will you send the drawing of the custom product for our confirmation before the production?
Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
