MINI TRUSS 100mm Square Truss from 0.5m to 3.0m Length

MINI TRUSS 100mm Square Truss from 0.5m to 3.0m Length
  • MINI TRUSS
  • MINI TRUSS
  • MINI TRUSS
  • MINI TRUSS
  • MINI TRUSS
  • MINI TRUSS

Product Model : TG-F14MT

Product Features :

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

MINI TRUSS

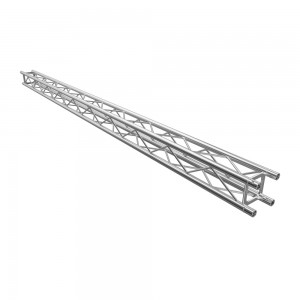

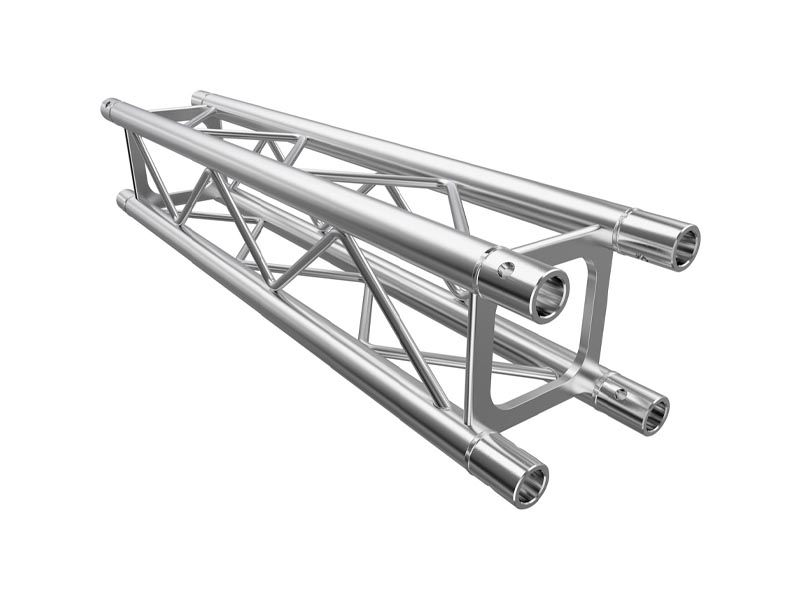

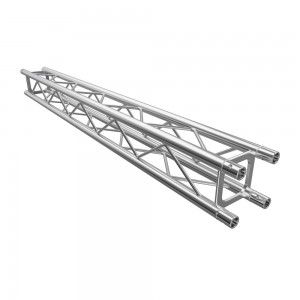

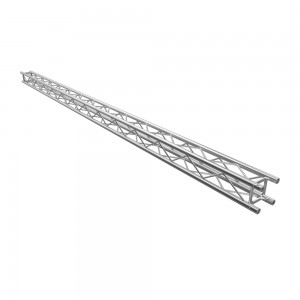

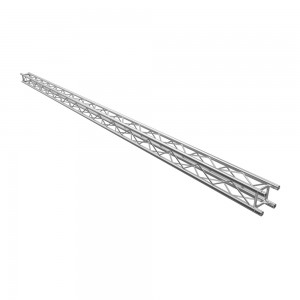

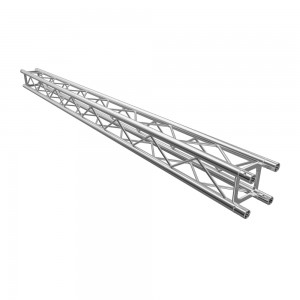

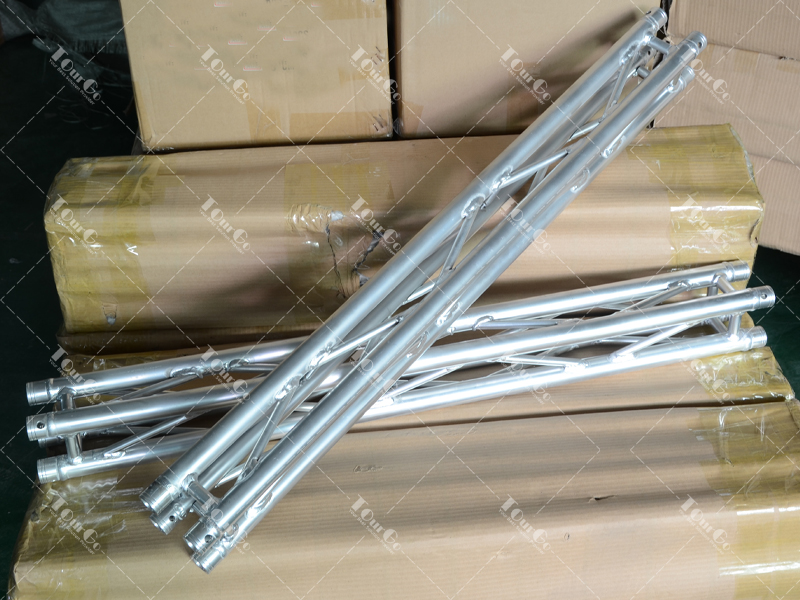

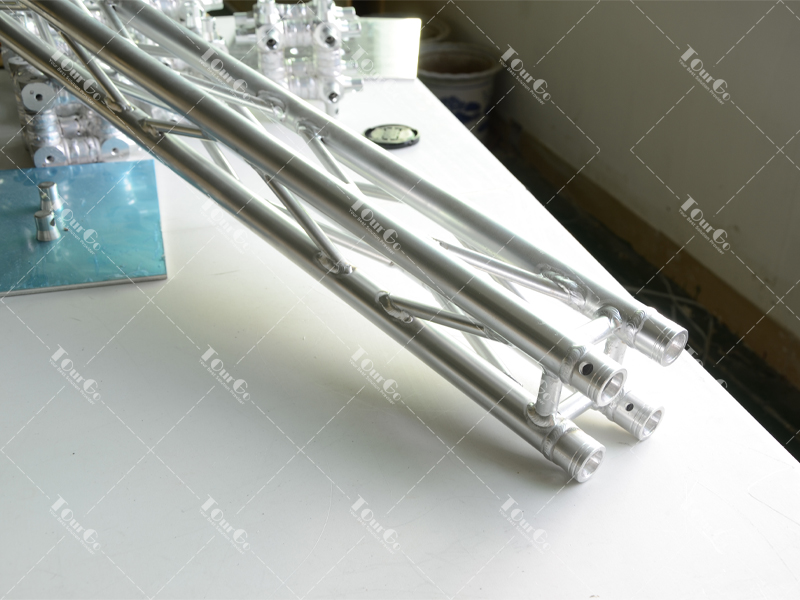

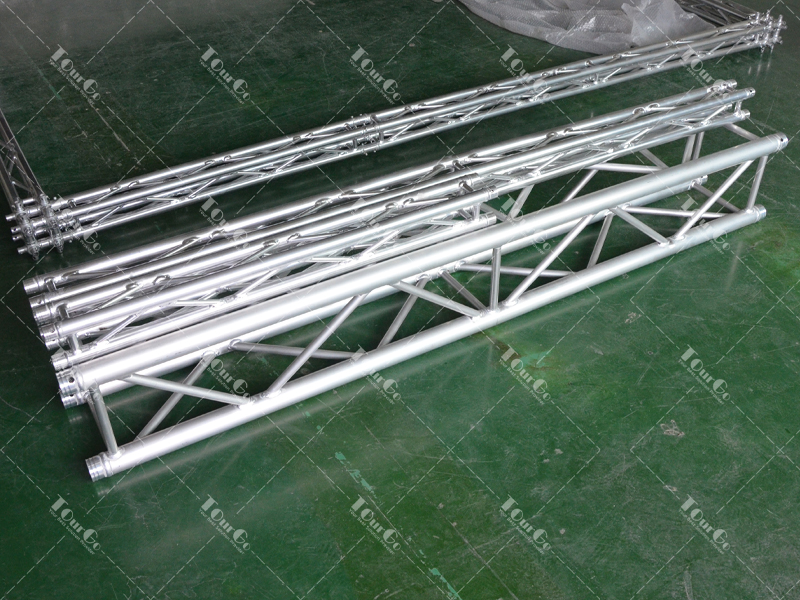

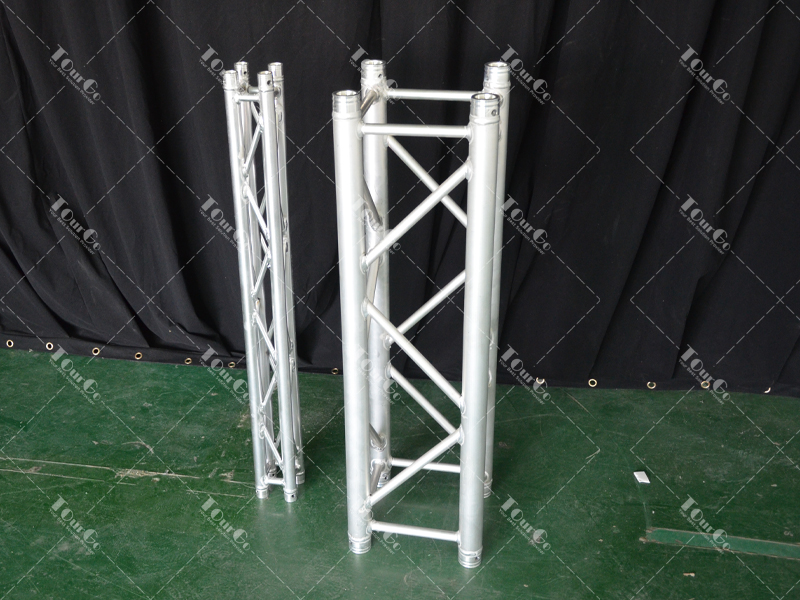

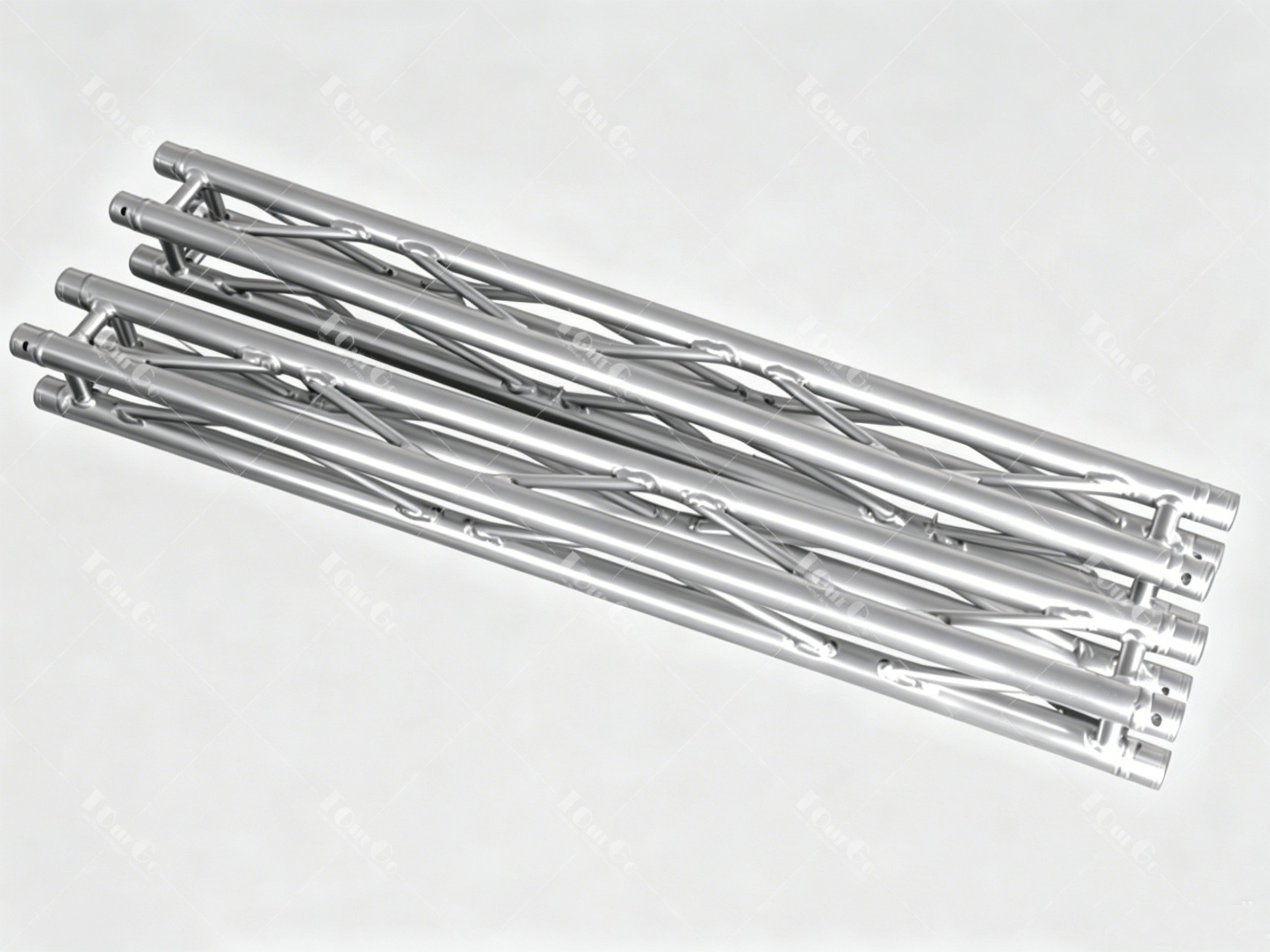

F14 Mini Square Truss (100mm)
3 7/8″ (100mm) width, 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m

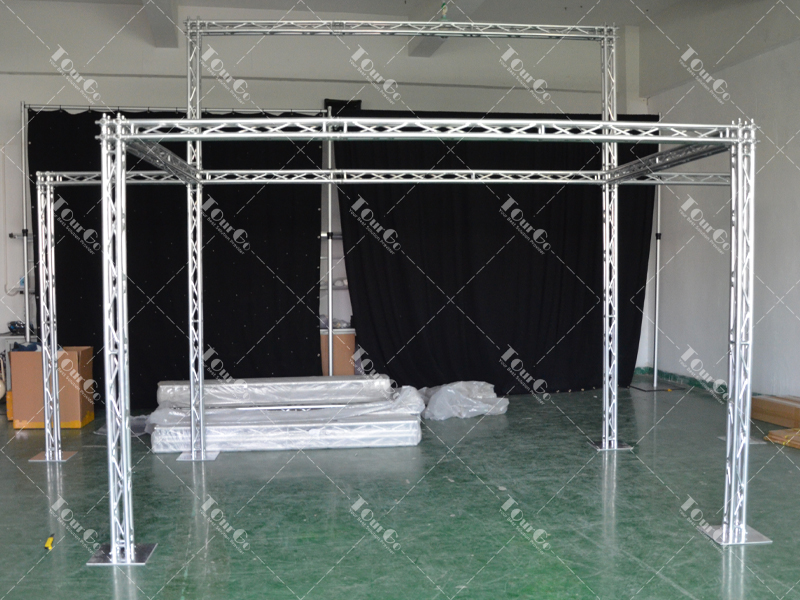

F14 mini truss is most used for exhibition shop fitting, display and interior decoration

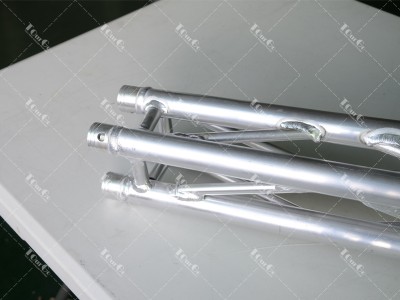

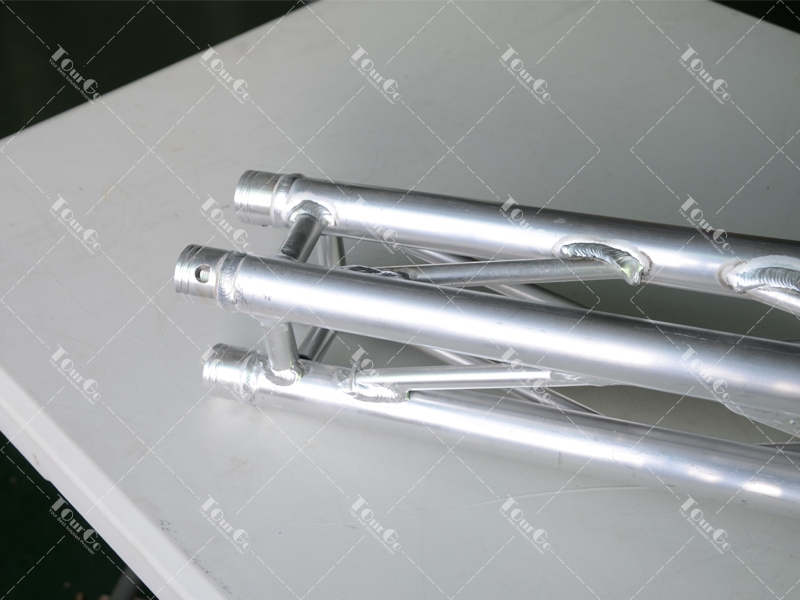

FABRICATED BY CERTIFIED TUV WELDERS
EQUIPPED WITH CONNECTING HARDWARE


3 7/8″ (100mm) OVERALL WIDTH
3/4″ (20mm) OUTER DIAMETER TUBING
1/4″ (5mm) DIAGONAL BRACING
0.08″ (2mm) WALL THICKNESS
T6 6082 METERIAL

 Square Truss1


F14 Circle Truss

F14-1M-180 DIA. 1M 180 DEG (One full Circle need 2pcs F14-1M-180)
F14-1M-90 DIA. 1M 90 DEG (One full Circle need 4pcs F14-1M-90)
F14-1.5M-90 DIA. 1.5M 90 DEG (One full Circle need 4pcs F14-1.5M-90)
F14-1.5M-180 DIA. 1.5M 180 DEG (One full Circle need 2pcs F14-1.5M-180)
F14-2M-90 DIA. 2M 90 DEG (One full Circle need 4pcs F14-2M-90)
F14-3M-90 DIA. 3M 90 DEG (One full Circle need 4pcs F14-3M-90)
F14R-4M-45 DIA. 4M 45 DEG (One full Circle need 8pcs F14R-4M-45)
F14-6M-45 DIA. 6M 45 DEG (One full Circle need 8pcs F14-6M-45)
F14-10M-30 DIA. 10M 30 DEG (One full Circle need 12pcs F14-10M-30)
  • Previous:
  • Next:
  • MODEL Description (Also Available Anodize silver or black)
    SQ-F14-0.3 0.98ft (0.3M) Mini Square Truss
    SQ-F14-0.5 1.64ft (0.5M) Mini Square Truss
    SQ-F14-0.8 2.62ft (0.8M) Mini Square Truss
    SQ-F14-1.0 3.28ft (1.0M) Mini Square Truss
    SQ-F14-1.5 4.92ft (1.5M) Mini Square Truss
    SQ-F14-2.0 6.56ft (2.0M) Mini Square Truss
    SQ-F14-2.5 8.20ft (2.5M) Mini Square Truss
    SQ-F14-3.0 9.84ft (3.0M) Mini Square Truss

    F14 MINI TRUSS LOADING TABLE

    Length UDL CPL
    m kg/m kg
    1 350 251
    2 155 196
    3 100 157
    4 75 141
    5 45 78
    6 26 56
    7 13 29

    Related Products:

    F14BOX F14 BOX CORNER
    F14BOOK F14 BOOK CORNER
    MINI 360-F14 SINGLE CLAMP, DIA. 20MM
    MINI SWIVEL CLAMP SWIVEL CLAMP, DIA. 20MM
    F14BASE ALUMINUM F14(100MM) BASE PLATE FIT SQUARE TRUSS

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?



    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.



    2. Does Tourgo company provide the OEM service?



    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!



    3. Does Tourgo company offer warranty for the sold products?



    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.



    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?



    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.



    5. What is the mean of Alphabet “U” in rack case catalog?



    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).



    6. I want to distribute your products in my country. How can I become a distributor ?



    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.



    7. What is the MOQ for your products?



    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products



    8. Can I get any discount for my order?



    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.



    9. What is your payment term, delivery time? Do you have the reliable freight agent?



    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.



    10. Will you send the drawing of the custom product for our confirmation before the production?



    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
