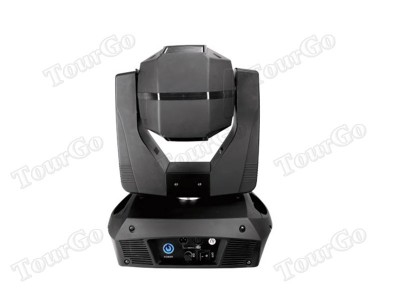

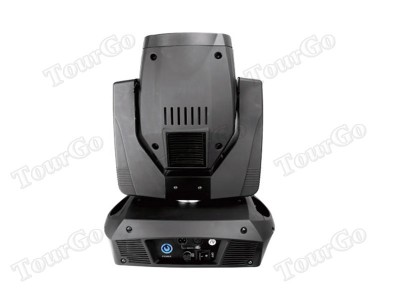

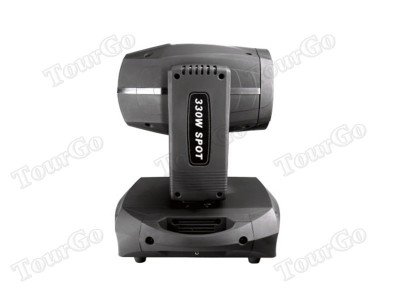

TourGo 330W Beam Spot Wash 3in1 Moving Head Light
Go to any concert, corporate event, tradeshow, theme park…even churches and you’ll see moving head light gracefully coasting their beam across the venue. Patterns flying, colors changing and intensities fading on and off as you watch. Moving head are flexible, versatile fixtures that have a movable beam as well as gobo wheels, prisms, iris’s, shutters and frost. Moving head light typically have an arc-based lamp. Moving heads can be very helpful to create a variety of interesting looks, and can take the place of multiple conventional lights in a lighting rig.
Electrical Specification
- Power Supply:AC110~240V,50/60Hz
- Power consumption: 450W
Source
- Lamp: OSRAM 330W /YODN330W/ PHILIPS 330w
- Ballast: electric ballast
- Life:2000h(Normal operating conditions)
- Color temperature: 7500±300K
Optical System
- High-precision multi-lens group
- Electronic focusing
- Prism:3 prisms with positive and negative rotation and prism location function
- Color wheel: one color wheel, 6 color chips
- Static Gobo Wheel: 14 fixed gobos+open white with gobo shaking function
- Rotating Gobo Wheel: 8 inserted rotation gobos and white circle with jitter and arbitrary positioning function
- CMY:CMY color mixing and speed can be adjustable
- Cyan:0~100%/Magenta:0~100%/Yellow:0~100%/Cto:0~100%
- Frost: 0~100% linear frost
- Subdued light effect: beam angle can adjust
- Iris: 5%~100%,motrized,stepless
- Beam angle: 5°~27°
- Strobe/Shutter:0~13 Hz strobe or random strobe
DMX Control
- Control channels: 21/23/34CH
- Protocol: Standard USITT DMX-512
- 3 pole XLR；（+）=Pin3 (-)=Pin2 (Gnd)=Pin1
- Die DMX-addressing starts at the DMX channel (001)
Operation
- Two kind of operation mode: DMX-512/Master and slave
- Pan scan: 540°/630°(8/16 bit precision scan),Electric correction
- Tilt scan: 270°(8/16 bit precision scan),Electric correction
Product Structure
- Product size: 337*405*660mm (W*L*H)
- Packing size: 370*435*700mm
- Net Weight: 23Kg
- Gross Weight: 25Kg
- Protection Degree: IP20
Rigging
- Ambient temperature: -20℃–+40℃（104K）
- Humidity: 10%—90%TH
1. Why your factory provide not only lighting truss, but also flight case, portable stage, pipe and drape ,ect ?
Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.
Our concept is “ Tourgo , Build your dream” Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.
2. Does Tourgo company provide the OEM service?
Yes, Tourgo could provide the OEM service according to your request.
We have the ten-year designers team, the customized flight case, portable stage, and lighting truss also is available, just need your idea!
3. Does Tourgo company offer warranty for the sold products?
Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.
4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?
Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.
5. What is the mean of Alphabet “U” in rack case catalog?
For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).
6. I want to distribute your products in my country. How can I become a distributor ?
Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.
7. What is the MOQ for your products?
Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products
8. Can I get any discount for my order?
Yeah, you can contact our sales team, depending on the amount of your order
- The products you need
- The exact desired order quantity
- Your desired time frame
- Any special packing instructions
With this information we will get back to you with a quotation.
We also offer limited time promotion, please notice our post in our website.
9. What is your payment term, delivery time? Do you have the reliable freight agent?
The payment term is T/T, Western Union.
Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we try our best to meet your demand. Moreover, we will send your goods pictures to you before the shipping
Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent, we would like to coordinate with them fully.
10. Will you send the drawing of the custom product for our confirmation before the production?
Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
