TourGo 54-Channel DMX Controller

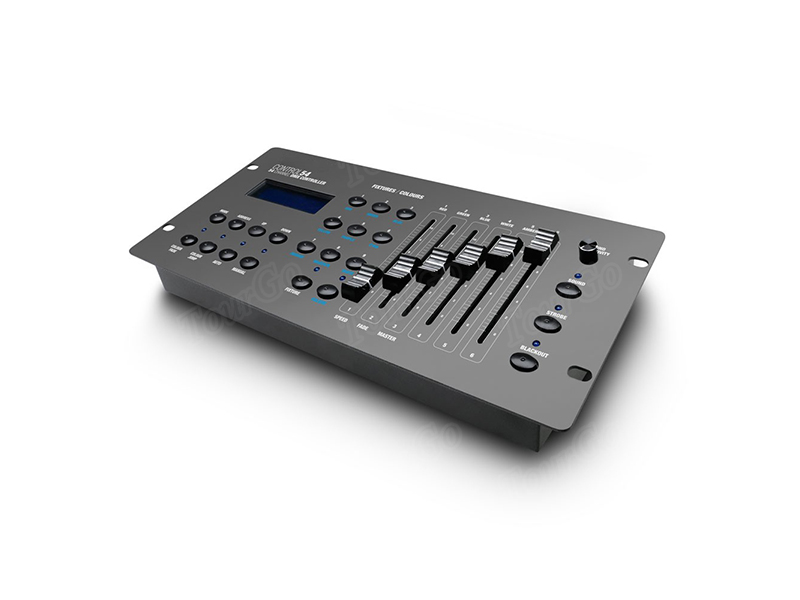

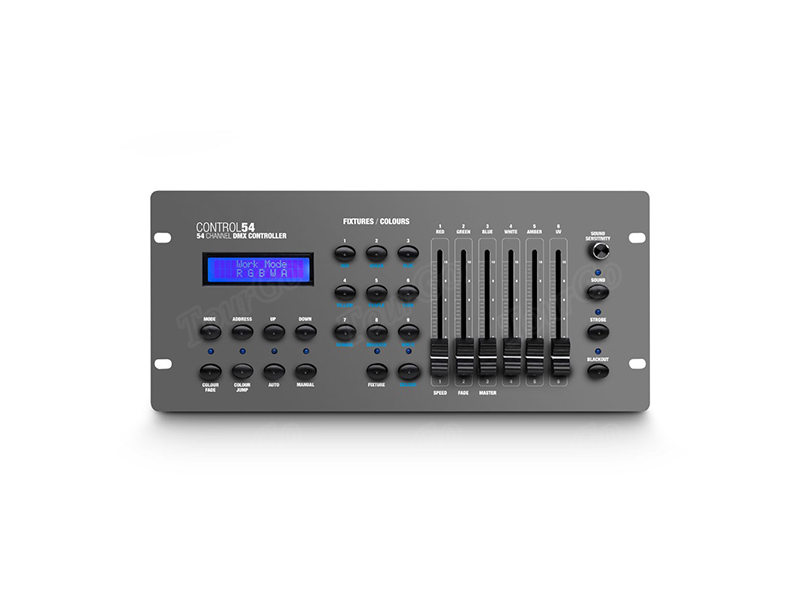

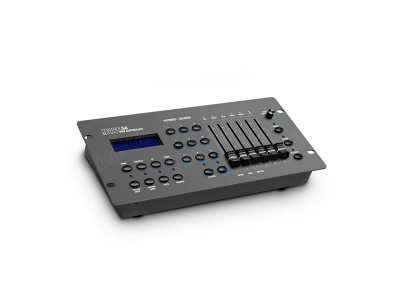

The Control 54 is a compact DMX lighting desk that handles up to 9 fixtures or fixture groups. Providing easy and intuitive operation, the versatile console is an ideal choice for DJs, nightclubs, lounges and bars. It features 9 colour presets with quick-access buttons that double as fixture selectors and 6 faders to individually control Red, Green, Blue, White, Amber and UV intensity.

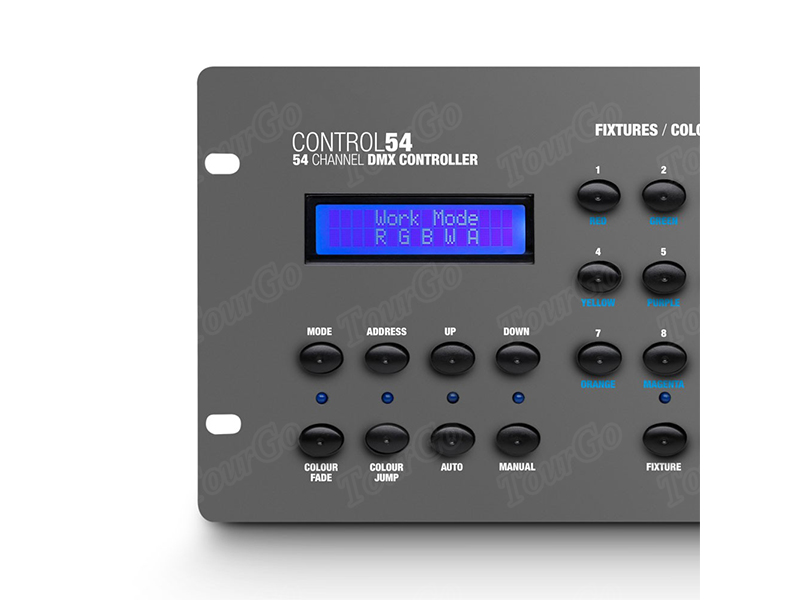

Multiple function buttons enable direct access to Sound Activation with adjustable microphone sensitivity, Strobe, Blackout, Colour Fade, Colour Jump, Auto or Manual modes, and an LC display conveniently shows the current function and parameters.

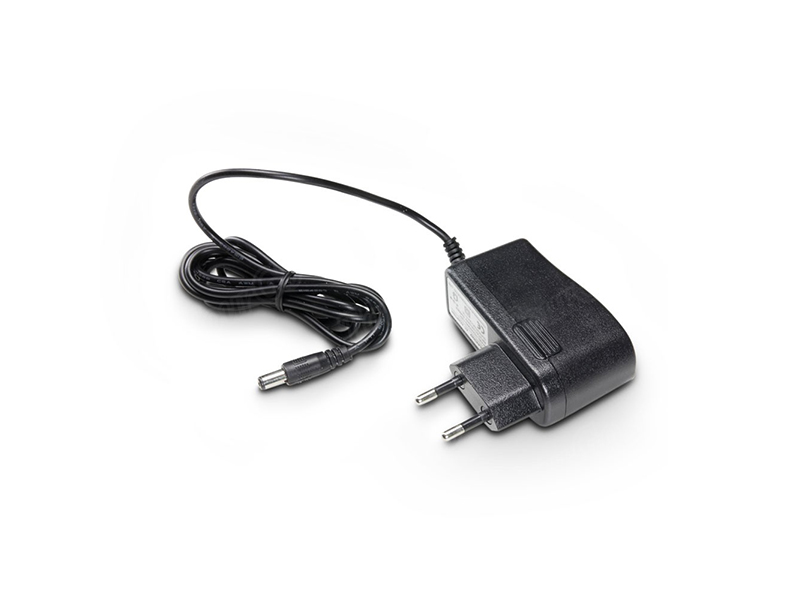

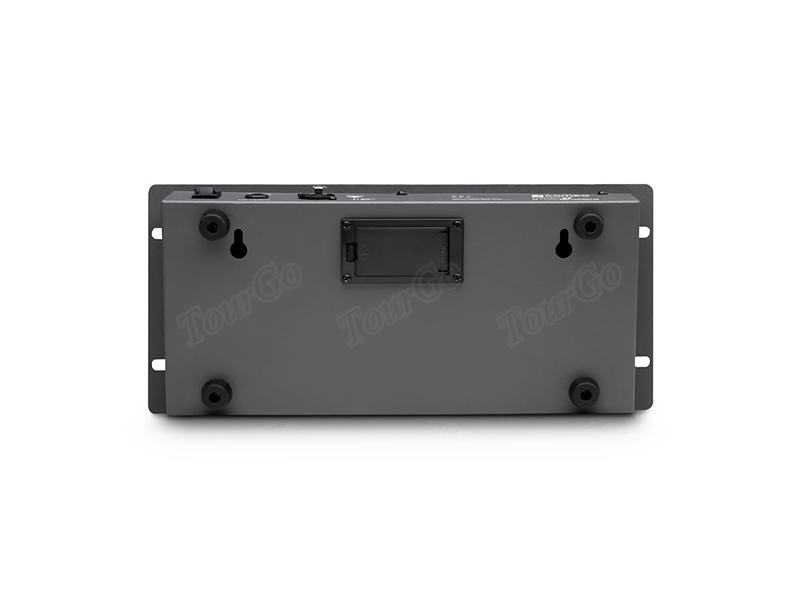

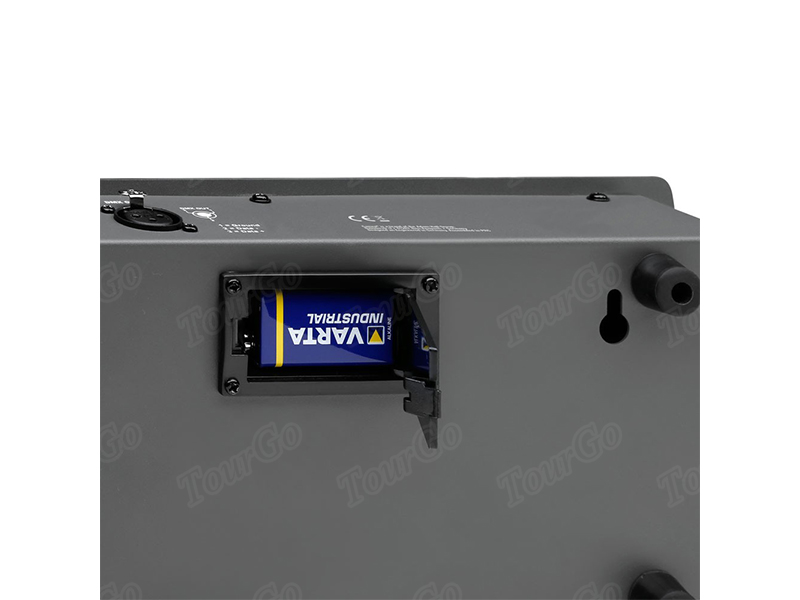

The TourGo Control 54 comes with a 9 – 12 V DC power adapter and 9 V battery for optional battery operation. It is compatible with all TourGo LED Bars, TourGo PAR Cans including the FLAT PAR PRO and FLAT PAR 1 Series and other fixtures with RGB, RGBW, RGBWA and RGBWA+UV colour mixing.
54-Channel DMX Controller Features
- 54-chanel DMX Controller
- For up to 9 fixtures or fixture groups
- Compatible with all RGB, RGBW, RGBWA and RGBWA+UV fixtures

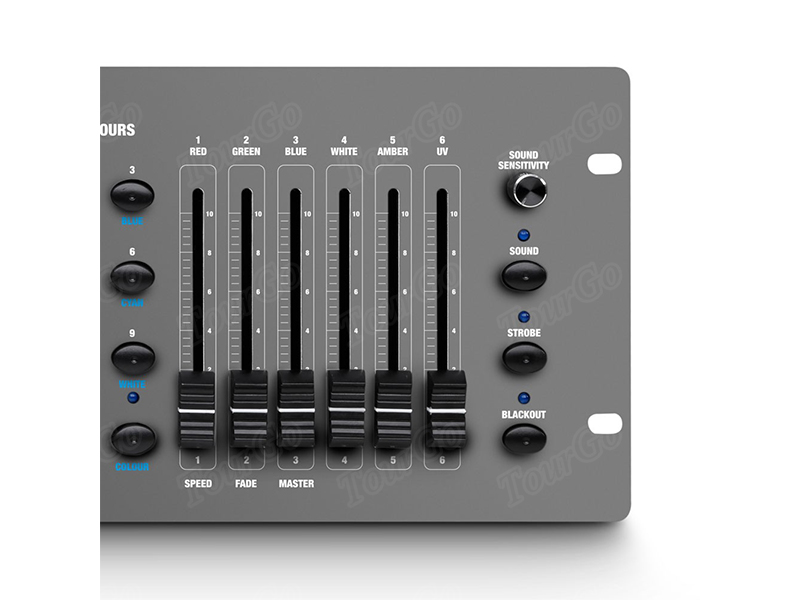

- 6 smooth faders for Red, Green, Blue, White, Amber and UV intensity control
- 9 colour presets with direct-access buttons
- Direct access to Auto or Manual modes, Blackout, Colour Jump, Colour Fade, Strobe and Sound Activation with sensitity control
- Powered by included adapter or 9 V battery
- Ideal for DJs, nightclubs, lounges, bars etc.
54-Channel DMX Controller Specifications
| Product number: | TGCONTROL54 |
| Product type: | DMX Mixers |
| Number of DMX channels: | 54 |
| Control: | USITT DMX 512 protocol |
| Features: | Music control, Manual control, Colour macros, colour jump, colour fade, Blackout, Auto Mode, Stroboscope |

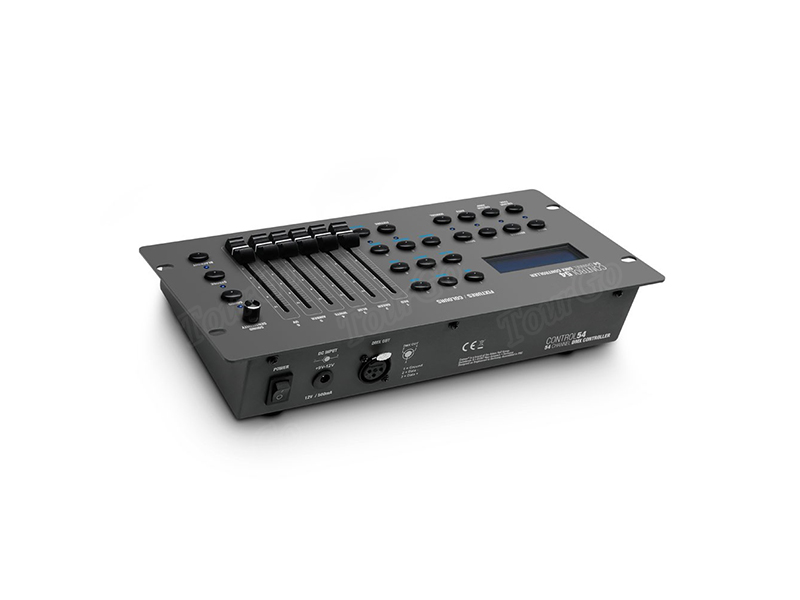

| DMX output: | XLR 3-pin female |
| Controls: | 22 control buttons, On / off switch, Controller for microphone sensitivity, 6x channel faders |
| Indicators: | LC display |
| Operating voltage: | External Power Supply, 9 V block, 9 – 12 V DC |
| Colour: | grey |
| Material: | metal |
| Width: | 316mm |
| Height: | 63mm |
| Depth: | 140mm |
| Accessories (included): | power supply, 9 V block |
| Weight: | 1,5kg |
